*New link for this kit, please click here.

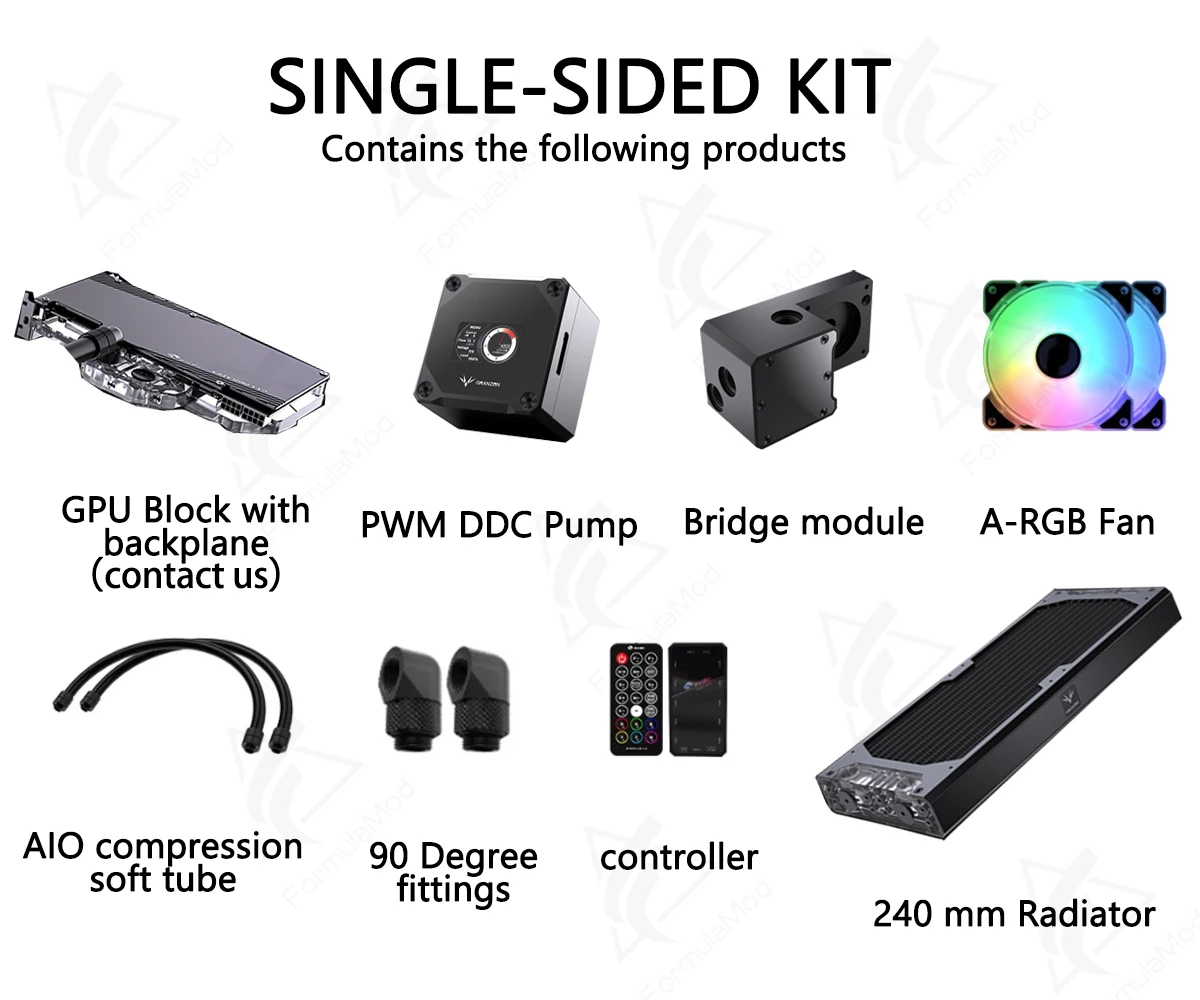

1. Granzon kit Includes:
①GPU block or CPU block [Please contact the seller (via message board or email) about your graphics card / CPU info according to your choice]
②PWM DDC pump with smart screen
③Pump bridge module
④240/360mm radiator (according to the purchase option)
⑤AIO soft tube 500mm x2
⑥90° fitting x2
⑦A-RGB fan x2/3 (according to the purchase option)
⑧A-RGB lighting & fans controller
*Due to strict restrictions on liquid transportation, this kit does not come with coolant, please prepare by yourself.
2. About the choice and judgment of GPU block:
The kit's GPU block is composed of Bykski GPU block.
The option "double-sided waterway version" is Bykski TC series GPU block(with active backplane)
If Bykski did not release TC series GPU block for your graphics card, then please select "Single-sided waterway+backplane version" for X series GPU block(with ordinary metal backplane)
*Some old series X series GPU blocks are not equipped with a backplane.
Graphics card information Asus TUF RTX 3090 24G Gaming
N-AS3090TUF-TC available (TC series - Double-sided waterway version)
N-AS3090TUF-X available (X series - Single-sided waterway+backplane version)
*If you don't know how to judge about TC and X series, you can contact us for your graphics card information before submitting the order
How to quickly determine whether it is available for you.
You can find the GPU block suitable for your graphics card on our website, then this kit is available,
3. About other products:
①. AIO soft tubes default 500mm
(200/300/400 is optional, for these size please leave a message or contact us)
②. The kit is black style, other color options are temporarily not supported
③. All lighting components of this kit are RBW 5v 3pin (A-RGB)
④. If you want to specify a CPU block instead of using the default block, you can also tell the seller
4. Some additional reference information:

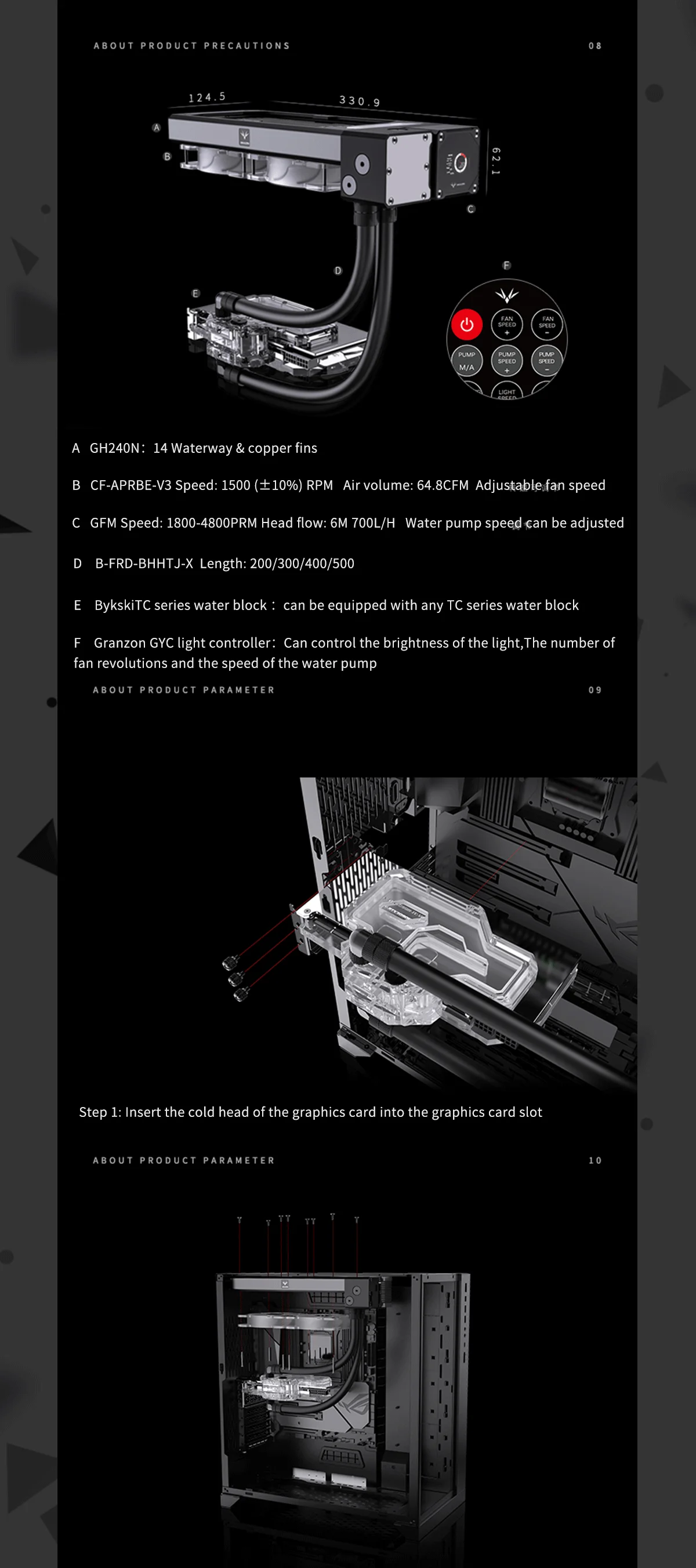

360 radiator combo size: about 451*124.5*62 mm
240 radiator combo size: about 331*124.5*62 mm
*As the radiator combo is slightly longer than the ordinary radiator, please pay attention to the case space before purchasing
5. Some tips on injecting coolant and exhausting air
When injecting the coolant, you can place the GPU block lower than the radiator combo, so that the coolant can flow downwards and the air can be discharged upwards.
②Exhausting air and bubbles
Radiator combo is placed in a lower position, then place the GPU block at a higher position, open one port from GPU block,
Then run pump for a short time, and when you see the water level drop, add coolant gently.
[Please note! The pump must have liquid in it to perform this operation. So once you see the water level on the GPU block drops, please add coolant, otherwise immediately turn off the pump to avoid damage without liquid working]
6. About product upgrades:
Bykski reserves the right to upgrades products or adjusts the contents of the kit,
If in the future such as product updates version, model or appearance, adjustments to the kit list, etc., if not notified in time, the Bykski's latest real object and the newest list shall prevail.
7. Shipping Note:
Due to DHL's stricter security checks recently,
For DHL packages sent to most countries, the following two items are prohibited:
1) Button battery, from pump controller and lighting controller, cannot be shipped by air.
Button battery information: CR2025 3V lithium battery
You can find the corresponding battery on your side and put it in the controller, it will work.
