Bykski · RGV-Antec-DA601-P
Distro plate for the Antec DA601
The Bykski RGV-Antec-DA601-P is an acrylic distribution plate for the Antec Dark Avenger DA601 case. It routes coolant between the CPU block, GPU block, and radiator in a single-GPU custom loop. The plate uses G1/4 ports and comes in two configurations, with or without a covered pump.
Fits
Antec DA601
Ports
G1/4
Lighting
5 V 3-pin A-RGB
Compatibility
- ✓Antec Dark Avenger DA601
Designed for a single-GPU custom loop. Check the full case model before ordering.
Key Specifications
| Model | RGV-Antec-DA601-P |
|---|---|
| Plate size (no pump) | 297 × 103 × 30 mm (L × W × T, Bykski drawing) |
| Materials | Acrylic body and aluminum mounting plate |
| Port thread | G1/4 |
| Lighting | 5 V 3-pin addressable RGB (Bykski RBW) |
| Pump mount | Bykski DDC |
Which Version Do I Need?
DA601 Distro PlateTHIS PAGE
Choose No Pump (RGV-Antec-DA601) if you already have a compatible Bykski DDC pump. Choose Pump With Cover (RGV-Antec-DA601-DPC) for the plate with a covered pump.
Choose the matching kit if you’re shopping for the rest of the loop too. It has AMD CPU and Intel CPU options.
What's in the Box
Distro plateMounting screwsHex wrench5 V 3-pin ARGB motherboard adapter cable
The Pump With Cover option adds the covered pump.

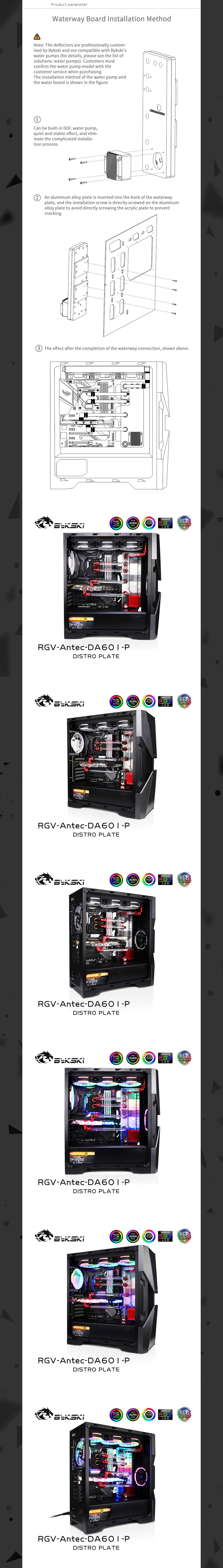

Installation & Use
1
If you chose No Pump, confirm your Bykski DDC pump is compatible, then attach it to the round pump mount on the same side as the coolant ports.
2
Fasten the plate to the case using the aluminum mounting plate on the opposite side.
3
Connect the CPU block, GPU block, and radiator to the plate with tubing and G1/4 fittings.
4
Fill the loop and leak-test it with only the pump powered before turning on the rest of the PC.
FAQ
Where does the plate fit?
It mounts inside the Antec Dark Avenger DA601 and is laid out for a single-GPU custom loop.

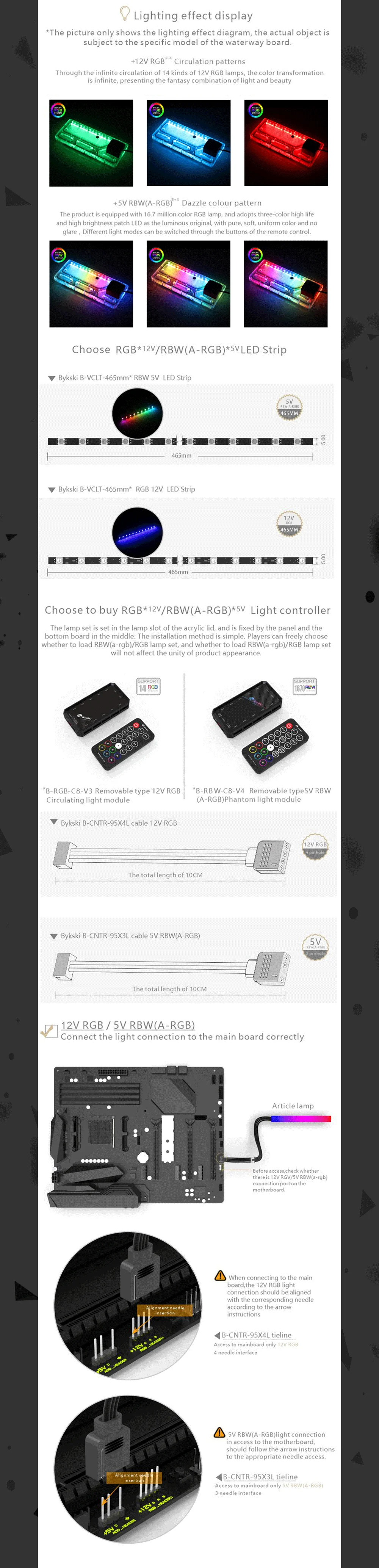

Which lighting header should I use?
Use the included adapter cable to connect to a matching 5 V 3-pin addressable RGB header on your motherboard. A 12 V 4-pin RGB header is incompatible. The distro plate ships without a lighting controller.

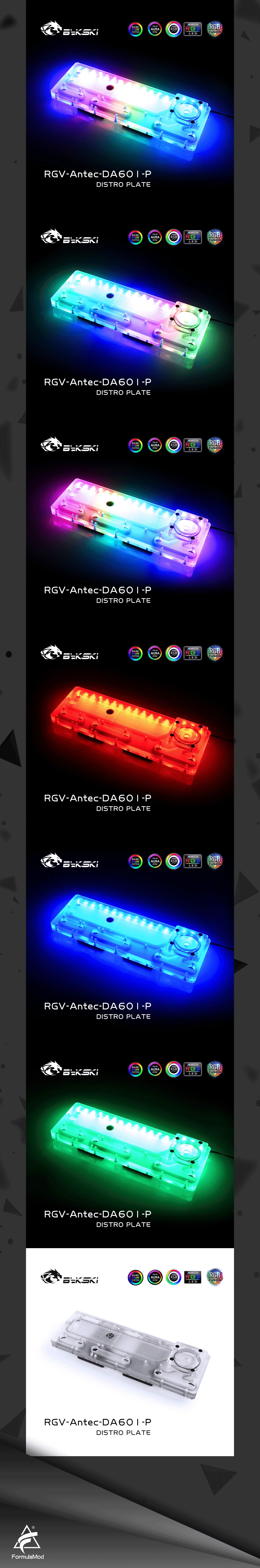

Product Photos



More product photos




Notes
- All pumps, radiators, reservoirs, cases, fittings, and other products in details photos are for reference only.
- As Bykski upgrades or adjusts the contents of the kit from time to time, such as product updates version, model or appearance, adjustments to the layout, etc., If not notified in time, the Bykski's latest real object shall prevail
