Bykski
Corsair 5000D Distro Plate Kit – Bykski RGV-COS-5000D-P, 5 V ARGB
Corsair 5000D distro plate kit for a CPU and single-GPU loop
The Bykski RGV-COS-5000D-P distro plate kit is built for a custom hardline loop in the Corsair 5000D PC case. The clear acrylic plate combines the coolant reservoir, DDC pump mount, and channels that connect the CPU block, graphics card block, and radiator. Provide your CPU and graphics card models so we can match the water blocks to your hardware.
Compatibility
Check the exact case and water blocks before ordering.
- ✓Corsair 5000D
Confirm the case edition on its label. Send your CPU model and socket, plus the full graphics card model and PCB revision, so we can match the two blocks.
Design Highlights
Route the loop through one plate
The clear acrylic lets you see the reservoir and coolant channels. A DDC pump mounts directly to the plate, and the G1/4 ports connect the plate to the rest of the loop.
5 V addressable lighting
The Bykski RBW light strip illuminates the edge of the acrylic. Use a 5 V 3-pin ARGB connection and keep the strip off 12 V 4-pin RGB headers.
Key Specifications
| Distribution plate | Bykski RGV-COS-5000D-P |
|---|---|
| Kit SKU | RGV-COS-5000D-P_Kits |
| Plate material | Clear PMMA acrylic |
| Plate size (L × W × T) | 353 × 123 × 30.5 mm, plate only |
| Port thread | G1/4 |
| Pump type | DDC |
| Plate lighting | 5 V 3-pin ARGB (Bykski RBW) |
| Reference radiator | 360 mm class, 30 mm thick |
| Reference hard tubing | 14 mm outside diameter |
Which Version Do I Need?
Choose based on which loop components you already have.

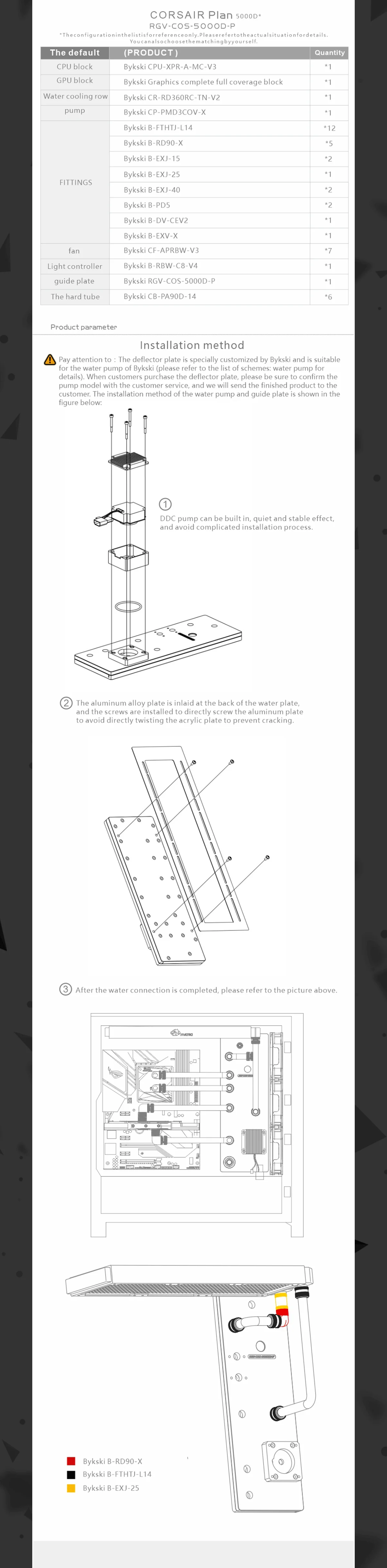

What's in the Box
This is Bykski’s reference kit list. Confirm the final parts and quantities when you provide your CPU and graphics card details.
Installation & Use
Have your Corsair 5000D, PC coolant, and hard-tube cutting and deburring tools ready.
FAQ
Does this Corsair 5000D distro plate kit come with a pump?
Yes, the kit includes a DDC pump. The separately listed plate-only option ships without one.
How do I get the right CPU and GPU blocks?
Send your CPU model and socket and the exact graphics card model and PCB revision before ordering. We use these details to match the blocks to your hardware.
What size fittings and tubing does the plate use?
The plate has G1/4 ports. Bykski’s reference tubing and hardline fittings are sized for 14 mm outside diameter.
Can I use a 12 V RGB header for the lighting?
Use a 5 V 3-pin ARGB (Bykski RBW) connection. A 12 V 4-pin RGB header is incompatible.
Are the case and coolant included?
Provide the Corsair 5000D case and PC coolant separately.
- This distro is designed for this case only. The tubing may not align perfectly horizontally due to variations in the motherboard, blocks, fittings, and layout. Not responsible for any hardware damage. Please use at your own risk.
- The kit's actual installation results will vary depending on progarm and case, builder ideas, etc.
- As Bykski upgrades or adjusts the contents of the kit from time to time, such as product updates version, model or appearance, adjustments to the kit list, etc..
- If not notified in time, the Bykski's latest real object and the newest list shall prevail.
