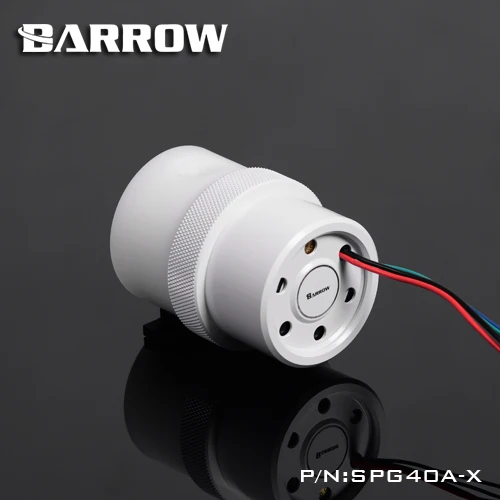

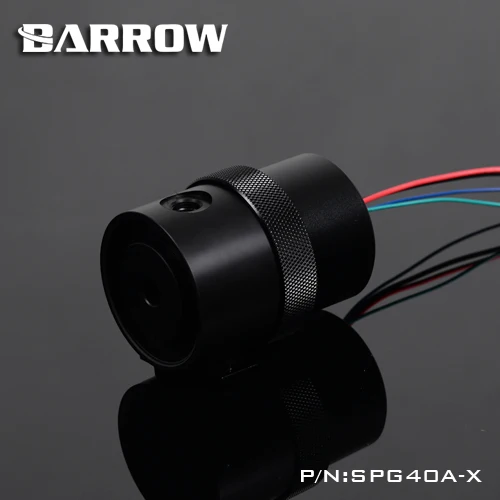

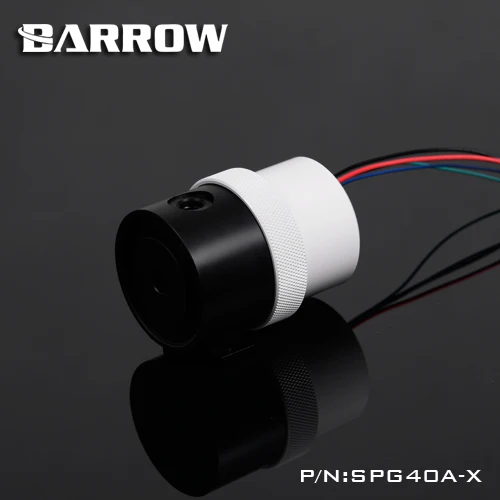

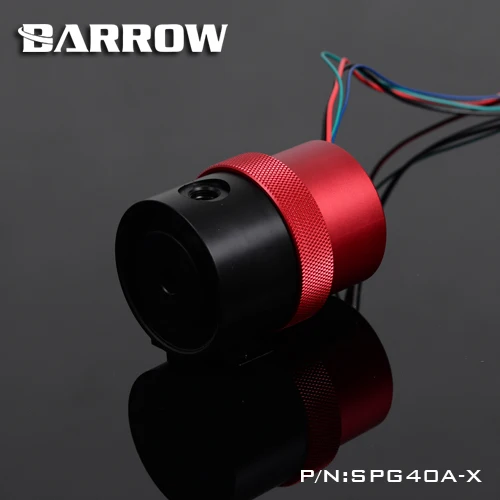

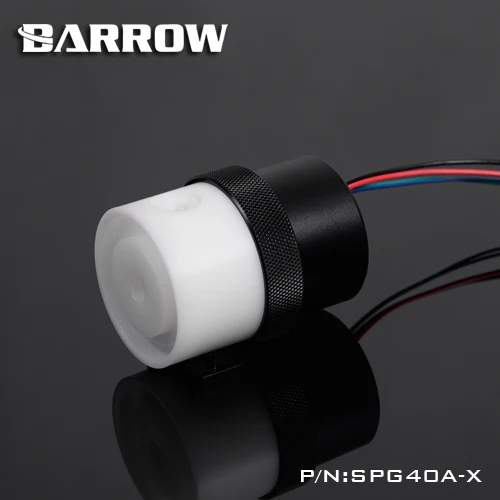

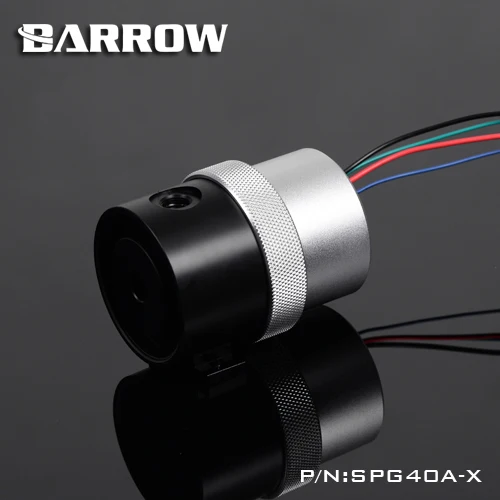

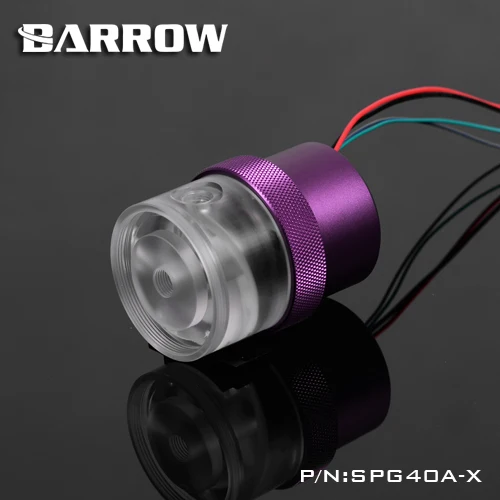

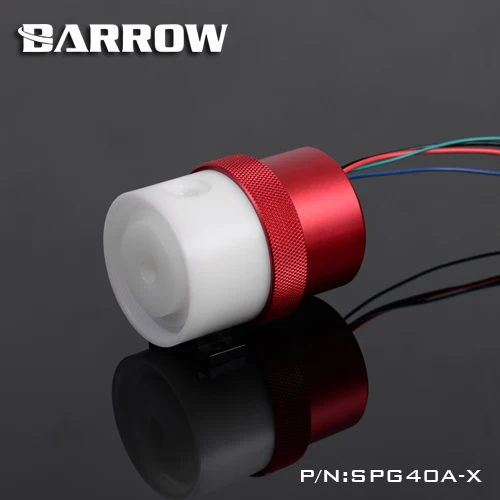

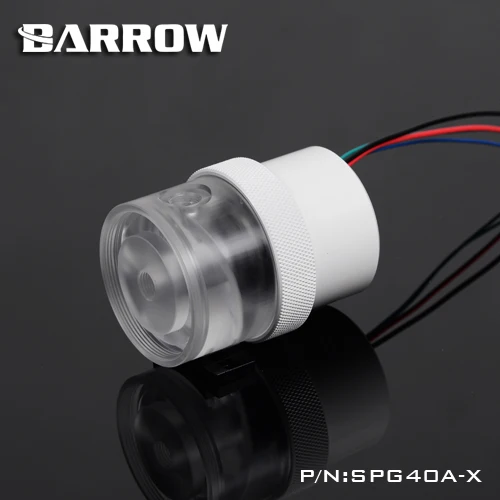

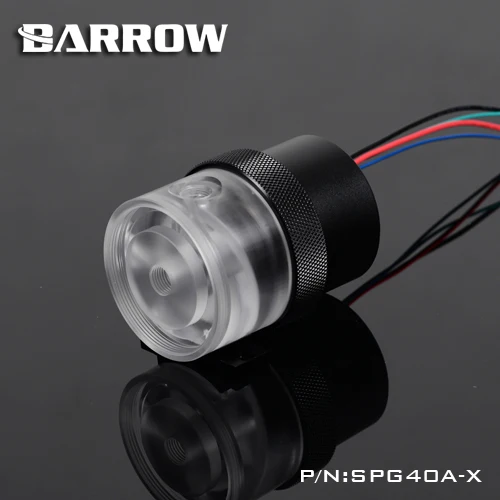

Barrow SPG40A-X, 18W PWM Pumps, Maximum Flow 1260L/H, Compatible with D5 Series Pump Cores and Components
Product properties:
Product model: SPG40A-X
Signal Interface: D-type 4Pin, PWM automatic speed control, data feedback
Pump type: Permanent magnet synchronous pump
Drive technology: Ultra durable PCB, solid state capacitors, chip sensor
Load speed: Max4800rpm
Power voltage: DC12V 18W
Voltage range: 8V-16V
Output head: 4m
Maximum flow: 1260L/H
Work temperature: 38°C when under 4000rpm
Top material: Acrylic/POM
Cover material: Aluminum alloy
Cover Color: Black/White/Silver/Red/Blue

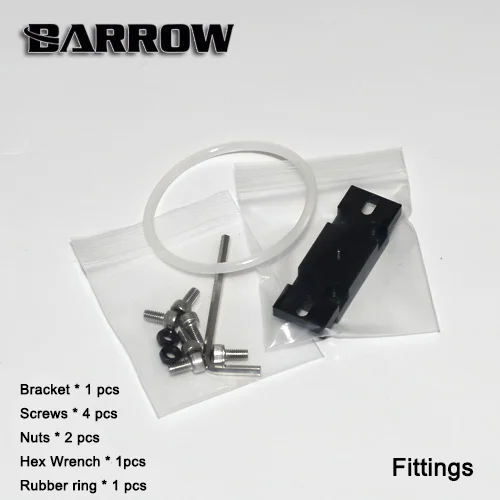

Standard: Screw bag, rubber ring, holder, hexagonal wrench
Note:
1. It is forbidden to work the pump for a long time without liquid (water or coolant).
2. It is forbidden to inlet of the pump downward

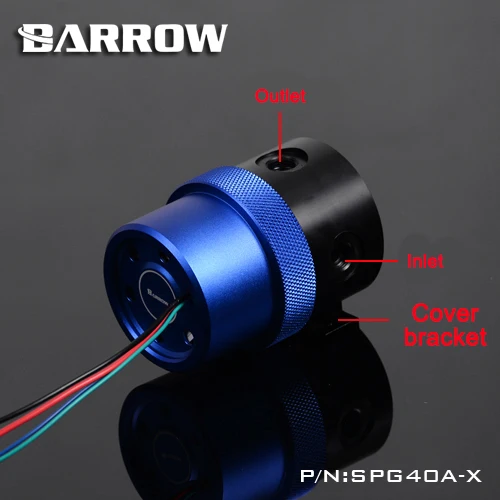

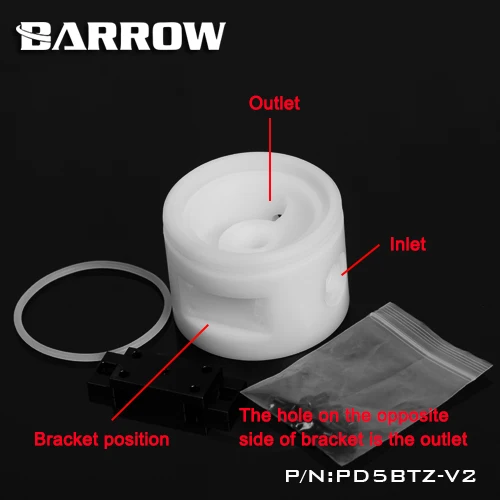

3. Before installing, please pay attention to distinguish between inlet and outlet.
4. Pump do not come with any fittings and plugs.
We recommend that you purchase an additional plug for inlet of the pump.
*If you plan to use 16x12 hard tube fittings,
Please add a male to female fitting to prevent the 16x12 tube fitting from the fitting's base being too large resulting in improper installation.
In case of upgrading to the appearance and structure, no further notice, the real object shall prevail
