Barrow · SPG40A

D5 PWM pump and reservoir for custom PC water cooling

The Barrow SPG40A is a D5-style PWM pump and reservoir combo for custom PC cooling loops with G1/4 fittings. The YKD5G65 reservoir threads directly onto the SPG40A-S or SPG40A-X pump top, so coolant feeds the pump from above. Choose a 90, 130, or 210 mm reservoir based on the space available in your case.

Fits
G1/4 loop fittings
Pump power
18 W at 12 V DC
Max flow
1,260 L/h
Max head
4 m

Fittings and Case Clearance

Use G1/4 fittings to connect the combo to your custom loop.

Check the assembled height and leave room for fittings and tubing. Check the clearance around the side ports before choosing fittings.

The side outlet is opposite the mounting groove. The other side port is an inlet. Seal any unused ports before filling the loop.

Design Highlights

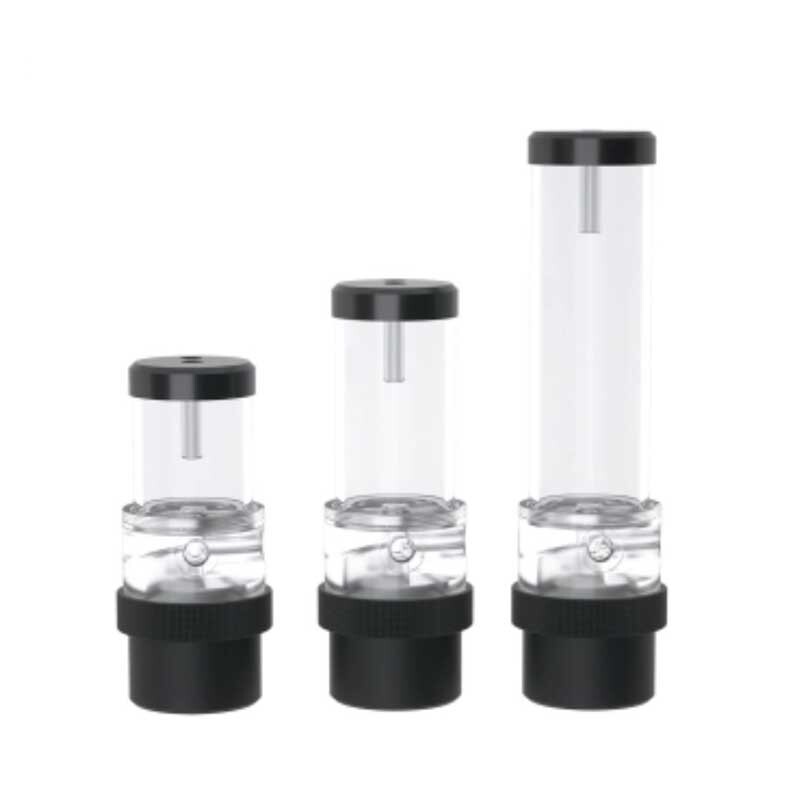

Barrow SPG40A black pump and reservoir combos lined up in three reservoir sizes

Three reservoir sizes

Choose a 90, 130, or 210 mm YKD5G65 reservoir. The clear acrylic body lets you see the coolant level. Check the assembled height in the specifications and leave room above the reservoir for filling.

Barrow SPG40A-X black motor housing close-up with the Barrow logo on the rear cap

Full-cover motor housing on the X model

The SPG40A-X adds an aluminum alloy shell around the motor to help dissipate heat. The standard SPG40A-S has the same published maximum flow, head, and speed.

Key Specifications

Pump optionsSPG40A-S (black or silver) and SPG40A-X (black, white, or silver)
Reservoir sizesYKD5G65-90 (90 mm), YKD5G65-130 (130 mm), and YKD5G65-210 (210 mm)
Height with 90 mm reservoirS: 178 ± 3 mm
X: 184 ± 3 mm
Height with 130 mm reservoirS: 214 ± 3 mm
X: 220 ± 3 mm
Height with 210 mm reservoirS: 299 ± 3 mm
X: 305 ± 3 mm
Width across the retaining ring79 mm as shown in the dimension drawing
Reservoir diameter65 mm inner, 68.5 mm outer
MaterialsClear acrylic pump top and reservoir body, POM reservoir cap, aluminum alloy motor shell on the X model
Coolant port threadG1/4
Pump power12 V DC, 1.5 A, 18 W
Power and speed control4-pin Molex power and separate 4-pin motherboard PWM
Maximum flow1,260 L/h
Maximum head4 m
Maximum pump speed4,800 RPM
Barrow SPG40A-S drawing showing the 90 mm reservoir, 178 mm assembled height, and 79 mm width across the retaining ring

SPG40A-S with the 90 mm reservoir. Dimensions are in millimeters.

Which Version Do I Need?

Choose the pump body and reservoir size based on the space you have. The silver X combo has a white reservoir cap, and the silver S combo has a black cap.

Barrow SPG40A comboTHIS PAGE
Choose this kit for a pump with a matching direct-mount reservoir. Pick the X model if you want the full-cover aluminum motor shell.
Choose the standalone X pump if you already have a compatible reservoir or need only a pump.
Choose the standalone reservoir to replace the tank on an SPG40A-S or SPG40A-X.

What's in the Box

1 × SPG40A-S or SPG40A-X pump1 × YKD5G65 reservoir in the selected size

Select “With 1x acrylic plug” to include one clear G1/4 acrylic stop plug. The default option comes without a stop plug.

Installation & Use

1
Thread the reservoir onto the pump top. Choose a mounting method suited to your case and secure the combo with the reservoir above the pump so coolant can feed the inlet by gravity.
2
Identify the inlet and outlet, connect the G1/4 fittings and tubing, and cap any unused ports.
3
Connect the Molex lead to the power supply. Connect the PWM lead to a motherboard PWM header for speed control.
4
Fill the reservoir and let coolant reach the pump before powering it. Keep the pump supplied with coolant while you leak-test the loop, then power the rest of the PC once the loop is leak-free.

You’ll also need G1/4 fittings, tubing, coolant, a radiator, water blocks for the components you’re cooling, and stop plugs for unused ports.

Barrow SPG40A wiring illustration with the separate four-pin PWM and Molex power plugs

Motherboard PWM connector on the left. PSU Molex connector on the right.

FAQ

Which reservoir size fits my build?

Compare your available space with the assembled height for your pump and reservoir in the table. Leave extra clearance for fittings, tubing, and filling.

Can I control pump speed from the motherboard?

Yes. Connect the separate 4-pin PWM lead to a motherboard PWM header and select PWM mode in BIOS. The pump draws power from the power supply’s Molex connector.

What is the difference between the SPG40A-S and SPG40A-X?

The X adds a full-cover aluminum alloy motor shell. Barrow lists the same 1,260 L/h maximum flow and 4 m maximum head for both models.

Does the kit come with a stop plug?

The optional plug configuration includes one clear G1/4 acrylic stop plug. If you select the default option, supply your own stop plug for any unused port.

Notes
  • In case of upgrading to the appearance and structure, no further notice, the real object shall prevail.
