240mm / 360mm Radiator Pump Combo with Reservoir and Fans | Barrow DARIDP-30
Radiator pump combo for custom PC water cooling

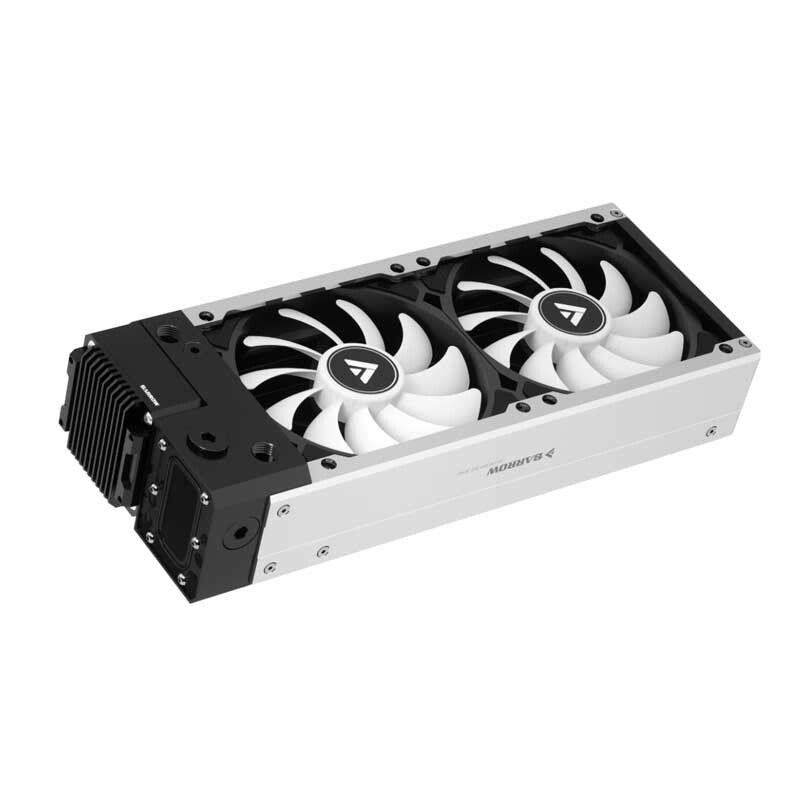

The Barrow DARIDP-30 combines a radiator, pump, reservoir, and fans in one assembly for a custom PC water cooling loop. It mounts in a chassis radiator position and joins your loop through G1/4 fittings. Keeping the pump and reservoir at the radiator frees up space elsewhere in the case.
Case and Loop Fit
Compare the full assembly dimensions with the space at your radiator mount.
- ✓240 mm radiator mount, with clearance for a 309.10 × 124 × 65.30 mm assembly
- ✓360 mm radiator mount, with clearance for a 429.10 × 124 × 65.30 mm assembly
- ✓Custom loop with G1/4 fittings
Check that the case also leaves room for fittings, tubing, and access to a fill port. Choose a separate water block that fits your CPU or graphics card.
Design Highlights
Radiator, pump, reservoir, and fans in one assembly
The aluminum alloy bracket holds the 120 mm fans against the copper radiator and closes the gap between the fans and core.
PWM or manual pump speed
The pump ships in PWM mode. Turn the speed knob clockwise to switch to manual control, or turn it fully counterclockwise to return to PWM.
Coolant level at a glance
The acrylic window lets you see the coolant level. Three fill points let you choose an access point that is reachable in your build.
Key Specifications
| Model | Barrow DARIDP-30 |
|---|---|
| 240 mm assembly (L × W × T) | 309.10 × 124 × 65.30 mm |
| 360 mm assembly (L × W × T) | 429.10 × 124 × 65.30 mm |
| Radiator core | Copper |
| Fan bracket / pump housing | Aluminum alloy |
| Reservoir window | Acrylic |
| Loop ports | 1 × G1/4 inlet, 1 × G1/4 outlet |
| Fill ports | 3 |
| Pump electrical input | 12 V DC, 17 W |
| Pump speed | 4,000 RPM |
| Pump max. flow rate | 960 L/h |
| Pump max. head | 5–6 m |
| Pump wiring | 4-pin peripheral Molex power and separate 4-pin PWM signal |
| Fans | 2 × 120 mm (240 mm) or 3 × 120 mm (360 mm) |
| Fan connector | Barrow 6-pin PWM, 12 V motor supply |
| Color options | Black or silver |
Which Version Do I Need?
Both radiator sizes come in black or silver. Select With controller to get a hub for the included fans. If you already have a Barrow DK401-7 or DK301-16, select No controller.
What's in the Box
Installation & Use
You also need a water block for your hardware, G1/4 fittings, tubing, and coolant. If you selected No controller, supply a Barrow DK401-7 or DK301-16.
FAQ
Does the DARIDP-30 include a CPU or GPU water block?
Choose a separate water block for your hardware. The DARIDP-30 supplies the radiator, pump, reservoir, and fans for the loop.
How thick is the assembled radiator pump combo?
Both assemblies are 65.30 mm thick. The 240 mm version is 309.10 mm long and the 360 mm version is 429.10 mm long, so measure the available space before ordering.
Can I plug the radiator fans straight into a motherboard fan header?
No. Connect the included 6-pin fans directly to a Barrow DK401-7 or DK301-16 controller. The pump uses a separate 4-pin PWM signal lead.
How do I fill the built-in reservoir?
Use an accessible fill port and check the coolant level through the acrylic window. Refit the fill plug before running the pump and keep coolant in the pump during testing.
- The factors of man-made damage (the large-scale fall of the wave plate, the water leakage caused by the screw penetration of the water channel, etc.) are not within the scope of the warranty;
- In case of product appearance structure upgrade, no notice will be given, the actual product shall prevail
