Barrow D5 Pump SPG40A-X, 18W PWM, G1/4 Ports, Aluminum Housing
18W PWM pump for custom PC water cooling
The Barrow SPG40A-X is an 18W D5-style pump that circulates coolant in a custom PC water cooling loop. Its included pump top accepts G1/4 fittings, and a full aluminum alloy housing helps draw heat away from the pump electronics. The pump runs on 12V DC and uses a separate motherboard PWM connection for speed control.
Fits & Connections
- ✓G1/4 fittings for the loop connections
- ✓4-pin peripheral power from the power supply
- ✓4-pin PWM header on the motherboard for speed control
Check the pump’s 78.50 mm diameter and 99 mm height against the space available in your build. Allow room for fittings and tubing.
Design Highlights
Pump top and housing included

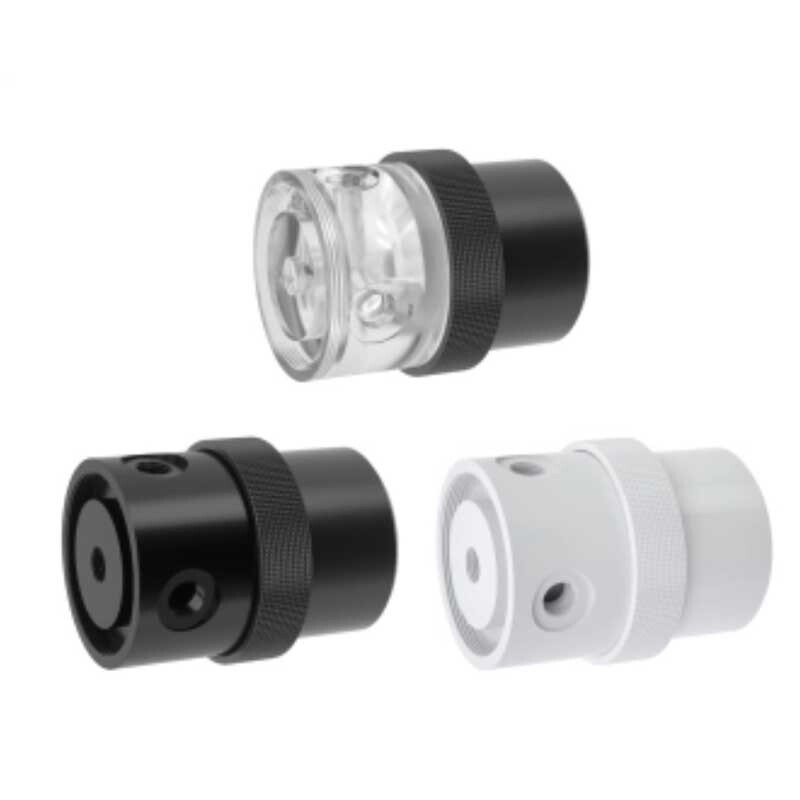

The pump comes with a G1/4 top. Choose clear acrylic, black POM, or white POM, then select a black, blue, red, silver, or white housing.
Full aluminum alloy housing
The CNC-machined housing surrounds the motor and helps dissipate heat from the pump electronics.
Key Specifications
| Model | SPG40A-X |
|---|---|
| Pump type | D5-style permanent-magnet centrifugal pump |
| Rated supply | 12 V DC, 1.5 A |
| Rated power | 18 W |
| Power connector | 4-pin peripheral (Molex-style) |
| Speed control | Separate 4-pin motherboard PWM connector |
| Maximum speed | 4,800 RPM |
| Maximum flow | 1,260 L/h |
| Maximum head | 4 m |
| Port thread | G1/4 |
| Pump top | Clear acrylic (PMMA), black POM, or white POM |
| Pump housing | CNC-machined aluminum alloy |
| Dimensions (diameter × height) | 78.50 × 99 mm |
| Weight | 240 g |
| Ingress protection | IP54 |
Which Version Do I Need?
What's in the Box
The assembly includes the pump core, the selected pump top, and the selected aluminum alloy housing. The reservoir is sold separately.
Installation & Use
For the rest of the loop, you’ll need a reservoir, tubing, G1/4 fittings and a stop plug, coolant, a radiator, and a water block.
FAQ
What are the dimensions of the pump?
The pump measures 78.50 mm across and 99 mm high.
Does the SPG40A-X come with a reservoir?
This listing includes the pump assembly with its top and housing. The SPG40A-X option in the pump and reservoir bundle adds a YKD5G65 tank.
How do I power the pump and control its speed?
The 4-pin peripheral connector supplies 12V DC from your power supply. The separate 4-pin PWM connector goes to your motherboard for speed control.
Which ports are the inlet and outlet?
The center port and one side port are inlets. The side port opposite the holder groove is the outlet. All three ports use G1/4 threads.
