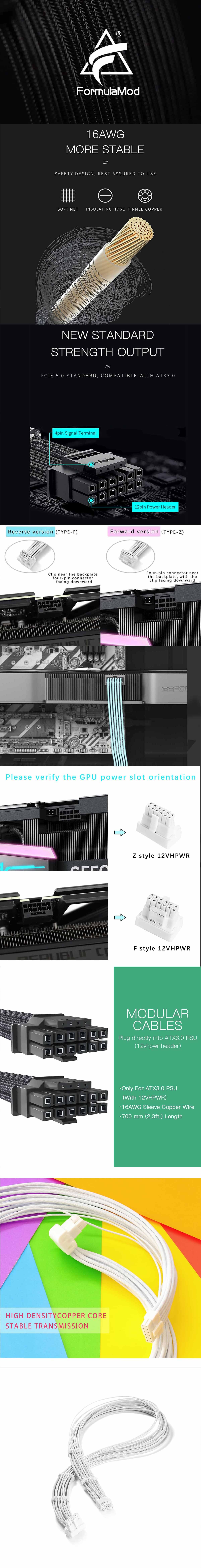

Formulamod 16AWG 12VHPWR 90-Degree Sleeved PSU Cable, 27.5in PCIe 5.0 16-Pin (12+4) Male-to-Male, 600W, with Combs, for RTX 30/40-Series 12VHPWR GPUs

Formulamod 16AWG 12VHPWR 90-Degree Sleeved PSU Cable, 27.5in PCIe 5.0 16-Pin (12+4) Male-to-Male, 600W, with Combs, for RTX 30/40-Series 12VHPWR GPUs

TL;DR: This Formulamod 12VHPWR cable replaces the factory adapter or stock modular cable on supported power supplies with a single sleeved 27.5 inch run terminating in a 90-degree 16-pin (12+4) connector at the GPU. Conductors are 16AWG tinned copper for a 600W rating across the PCIe 5.0 spec, and...

Common Applications

This Formulamod 12VHPWR cable replaces the factory adapter or stock modular cable on supported power supplies with a single sleeved 27.5 inch run terminating in a 90-degree 16-pin (12+4) connector at the GPU. Conductors are 16AWG tinned copper for a 600W rating across the PCIe 5.0 spec, and terminals are alloy copper. The angled GPU head allows the cable to exit parallel to the PCB, which keeps it clear of side glass panels on slim and ATX mid-towers and removes the sharp 90-degree bend at the connector face that has been associated with mechanical stress on the receptacle. It is intended for builders running an RTX 3090 Ti, 4070 Ti, 4080 or 4090 (or any GPU that uses the standard 12VHPWR / 12V-2x6 input) who want a cleaner cable run and additional connector clearance. Dedicated 12+4 cable combs are included.

Frequently Asked Questions

Q: Which GPUs does this cable support?

A: Any graphics card that uses the 12VHPWR / 12V-2x6 (16-pin, 12+4) power input, including the RTX 3090 Ti, RTX 4070 Ti, RTX 4080 and RTX 4090.

Q: What is the wire gauge and power rating?

A: 16AWG tinned copper conductors rated for the full 600W of the PCIe 5.0 12VHPWR spec.

Q: What is the cable length?

A: 27.5 inches, measured connector to connector.

Q: Is the 90-degree connector on the GPU end or the PSU end?

A: On the GPU end. The PSU end uses the standard straight 12+4-pin layout matched to the PSU's modular interface - confirm your PSU's modular pinout (Type-F is one common variant) before ordering.

Q: Are cable combs included?

A: Yes, dedicated 12+4 cable combs are supplied to keep the sleeved wires aligned in a ribbon.
