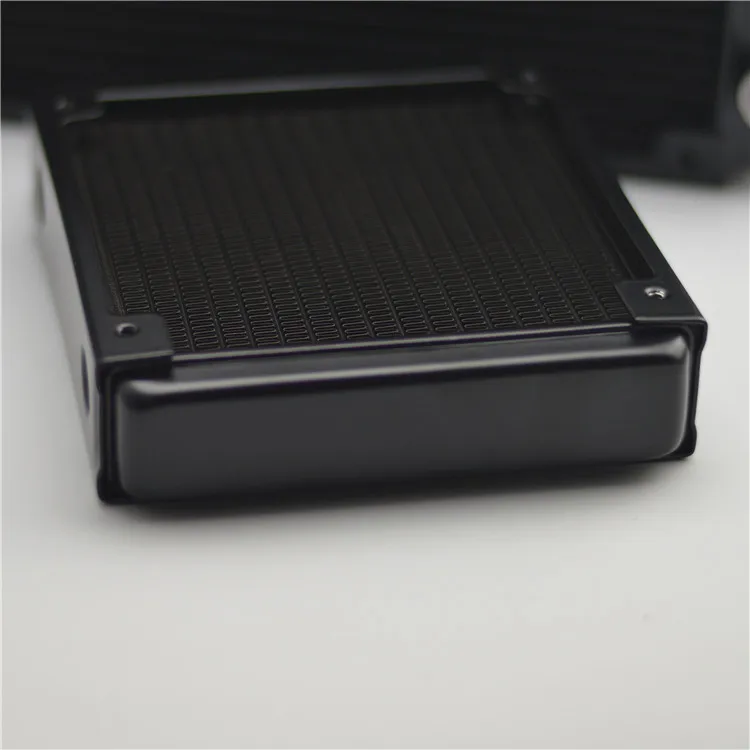

FormulaMod Fm-AlRa Aluminum Single-Row Radiator, 30mm Thick, 120/240/360mm for 120mm Fans

FormulaMod Fm-AlRa Aluminum Single-Row Radiator, 30mm Thick, 120/240/360mm for 120mm Fans

TL;DR: The Fm-AlRa is a single-row aluminum water cooling radiator with a 30mm core thickness and a 120mm fan pitch, offered in 120mm, 240mm, and 360mm lengths. The all-aluminum construction targets budget custom loops and aluminum-only AIO-style builds, where mixing metals is avoided to prevent galvanic...

Common Applications

The Fm-AlRa is a single-row aluminum water cooling radiator with a 30mm core thickness and a 120mm fan pitch, offered in 120mm, 240mm, and 360mm lengths. The all-aluminum construction targets budget custom loops and aluminum-only AIO-style builds, where mixing metals is avoided to prevent galvanic corrosion. Mounting follows the standard 120x120mm fan pattern, so it drops into any case that accepts a 120/240/360 radiator slot. G1/4 ports accept any standard fitting, and the 30mm thickness keeps the radiator usable in cases with limited clearance over the motherboard or front panel.

Frequently Asked Questions

Q: What sizes does the Fm-AlRa come in?

A: 120mm, 240mm, and 360mm lengths, all at 30mm core thickness with 120x120mm fan mounts.

Q: What material is the radiator?

A: All aluminum, including fins, tubes, and end tanks.

Q: Can I mix it with a copper or brass water block?

A: No. Aluminum mixed with copper, brass, or nickel in the same loop accelerates galvanic corrosion; use aluminum blocks and fittings throughout.

Q: What ports does it use?

A: Standard G1/4 threaded ports compatible with any G1/4 fitting.

Q: What fan thickness fits?

A: Standard 25mm-thick 120mm fans mount on the 120x120mm pattern; thicker fans work if case clearance allows.
