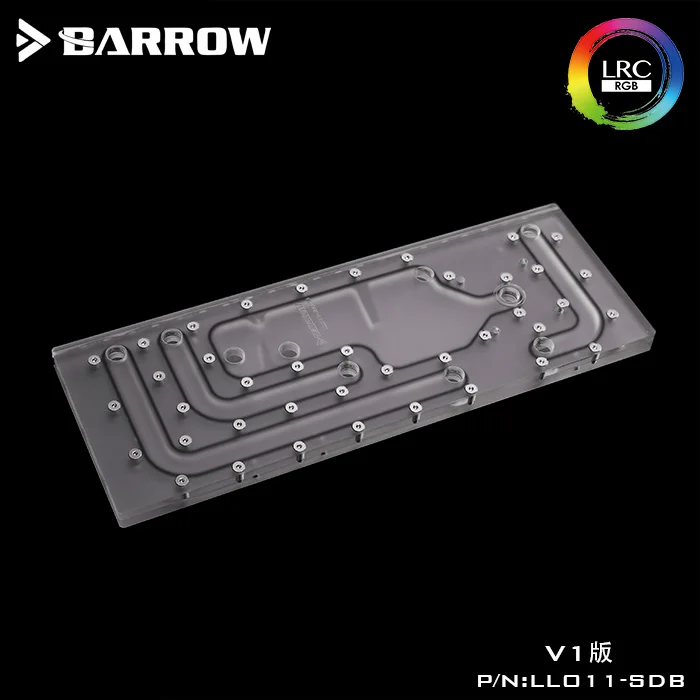

Barrow LLO11-SDB V1 Side-Mounted Acrylic Waterway Distribution Plate for Lian Li PC-O11 Dynamic - Intel CPU + Single GPU Loop, LRC 2.0 5V ARGB
Barrow LLO11-SDB V1 Side-Mounted Acrylic Waterway Distribution Plate for Lian Li PC-O11 Dynamic - Intel CPU + Single GPU Loop, LRC 2.0 5V ARGB
TL;DR: The LLO11-SDB V1 is a side-mounted distribution waterway plate cut from acrylic and shaped to bolt directly onto the side panel of the Lian Li PC-O11 Dynamic chassis. The internal channels are routed for an Intel CPU plus single GPU loop and use standard G1/4 inlet and outlet ports, so any...
Common Applications
The LLO11-SDB V1 is a side-mounted distribution waterway plate cut from acrylic and shaped to bolt directly onto the side panel of the Lian Li PC-O11 Dynamic chassis. The internal channels are routed for an Intel CPU plus single GPU loop and use standard G1/4 inlet and outlet ports, so any compatible CPU block, GPU block, pump, and radiator can be plumbed in. Mounting the loop manifold on the side panel removes most of the long bends from a rigid build and frees the front of the case for a 360mm radiator. A 5V 3-pin LRC 2.0 addressable RGB strip is built into the plate and synchronizes with the main motherboard 5V ARGB headers. A separate pump-top mount and reservoir are required - this is a waterway plate only.
Frequently Asked Questions
Q: Which case does this plate fit?
A: Lian Li PC-O11 Dynamic (original) only. It does not fit the PC-O11D Mini, PC-O11D XL, or PC-O11D EVO without the matching variant.
Q: What loop topology does it support?
A: One Intel CPU block plus one GPU block in series, with the pump-and-reservoir feeding the plate and the radiator returning through the plate.
Q: What threads and ports are used?
A: Standard G1/4 inlet and outlet ports. Any G1/4 compression fitting or stop plug will mate to the plate.
Q: Is RGB included, and what protocol?
A: Yes. Built-in LRC 2.0 5V 3-pin addressable RGB. Connect it to a 5V ARGB motherboard header or a Barrow LRC 2.0 controller. Never connect it to a 12V RGB header.
Q: Does the plate include a pump, reservoir, or fittings?
A: No. The plate is the waterway manifold only. A separate pump, reservoir, fittings, CPU block, GPU block, and radiator are required to complete the loop.
