FormulaMod · Fm-BZXZ-ASUS

Sleeved replacement cables for a fully modular PSU

The FormulaMod Fm-BZXZ-ASUS is an 18 AWG sleeved cable kit for fully modular desktop power supplies. It replaces the original DC cables and includes combs to keep the individual wires aligned. Choose a kit by cable length and connector count, and confirm that your PSU manufacturer permits this exact kit before ordering.

PSU connection
Direct to modular ports
Wire gauge
18 AWG
GPU connector
PCIe 6+2-pin
Kits
A, A+, and B

Compatibility

Check the exact PSU model and revision before ordering.

PSU compatibility for this kit is unverified. Modular pin assignments can differ between power supplies even when the connectors look alike. Use this kit only if your PSU manufacturer confirms it for your exact model and permits its use.

ASUS advises using the original modular cables and requires them for the ROG-THOR-850P and ROG-THOR-1200P. Seasonic’s installation guide directs users to use only the original modular cables supplied with their PSU.

Design Highlights

FormulaMod Fm-BZXZ-ASUS diagram of the two PSU-side plugs on the ATX motherboard cable

The two PSU-side plugs on the Fm-BZXZ-ASUS motherboard cable.

Dedicated PSU and component ends

The motherboard cable has two plugs at the PSU end and one 24-pin plug at the motherboard end. Confirm compatibility with your exact PSU model before connecting either end.

FormulaMod Fm-BZXZ series example showing coiled blue braided wires and clear cable combs

Individual sleeves and cable combs

Each wire has its own braided sleeve. Use the included combs to keep the wires parallel along visible runs.

Key Specifications

ModelFm-BZXZ-ASUS
Cable typeDirect replacement for fully modular PSU cables
Wire gauge18 AWG
Individual wire outer diameter3 mm
ConstructionIndividual braided sleeves over insulated wires
Component-side connectorsATX 24-pin, EPS 4+4-pin, PCIe 6+2-pin, SATA power, Molex 4-pin

Which Version Do I Need?

Each version has its own PSU-side connector layout. Read the model number from the PSU label. If the revision is unclear, ask the PSU manufacturer to identify it and confirm cable compatibility.

FormulaMod Fm-BZXZ-ASUSTHIS PAGE
Use the compatibility guidance above to check your PSU before choosing a kit.
Compare the separate EVGA version if you have an EVGA power supply.
Compare the separate Corsair version if you have a Corsair power supply.

What's in the Box

Kit A · 8 cablesKit A+ · 9 cablesKit B · 7 cables

Each kit includes 24-pin and 8-pin cable combs. The standard kits omit the SATA splitter.

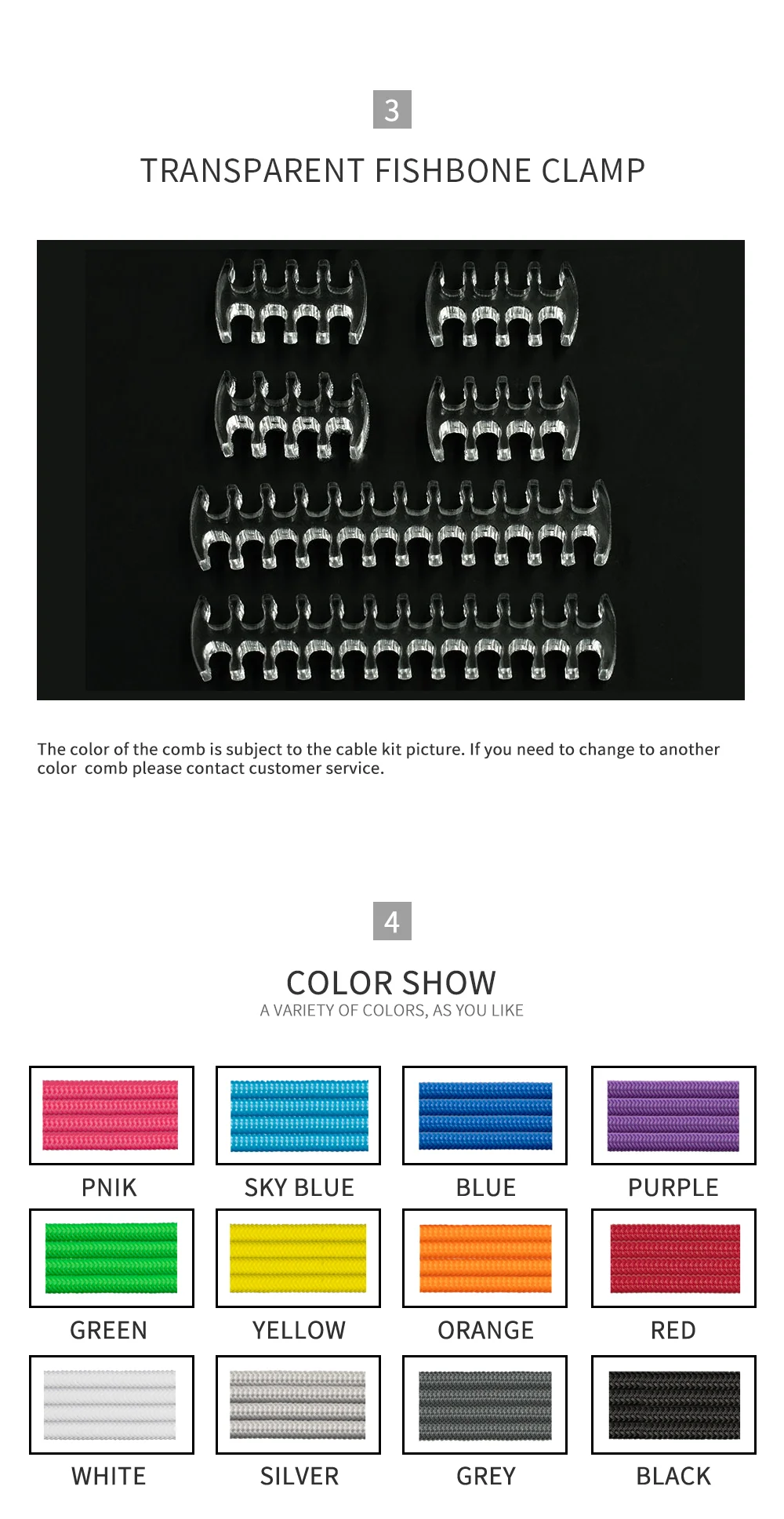

FormulaMod Fm-BZXZ-ASUS examples of clear 8-pin and 24-pin cable combs

Cable comb examples.

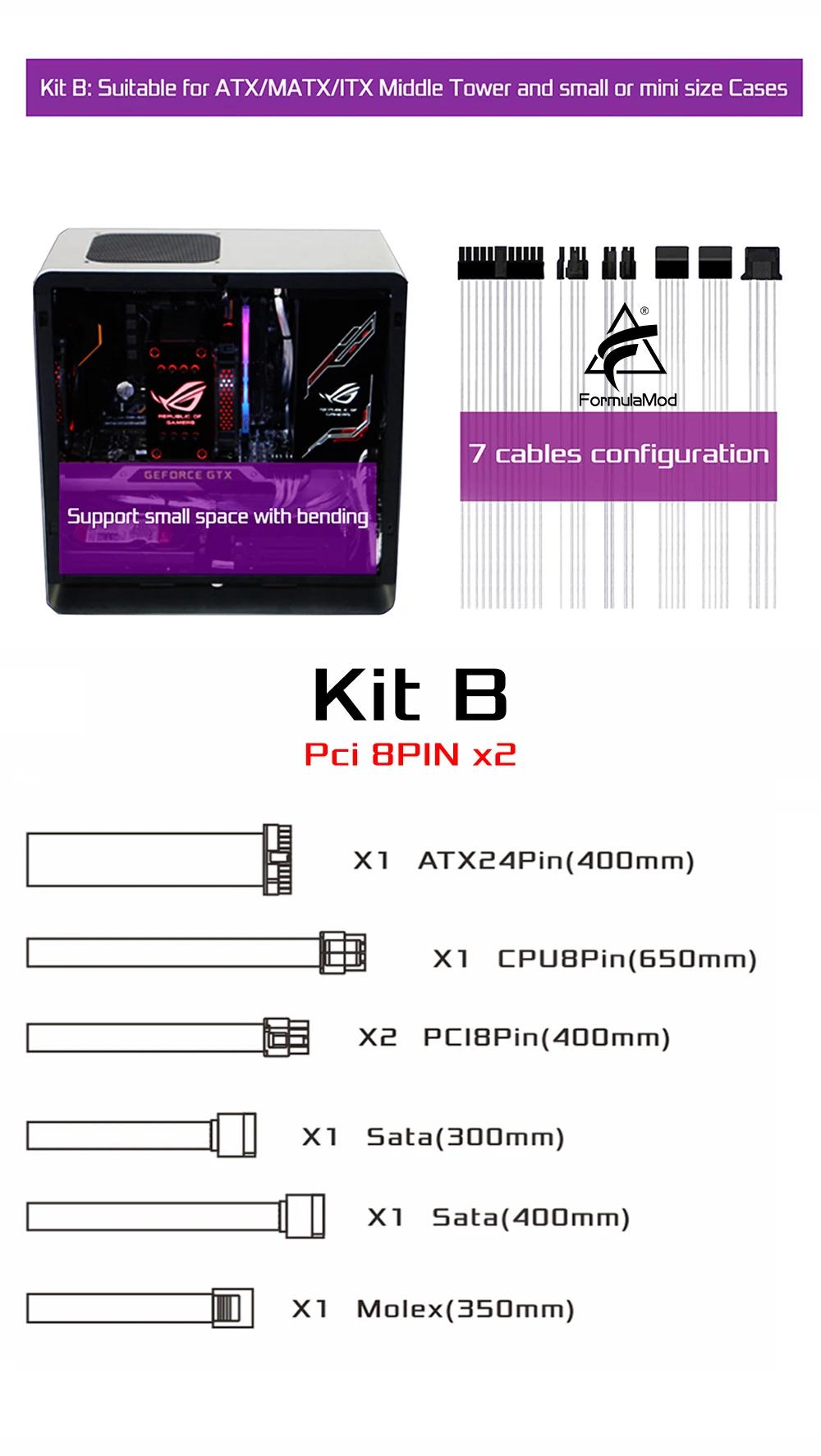

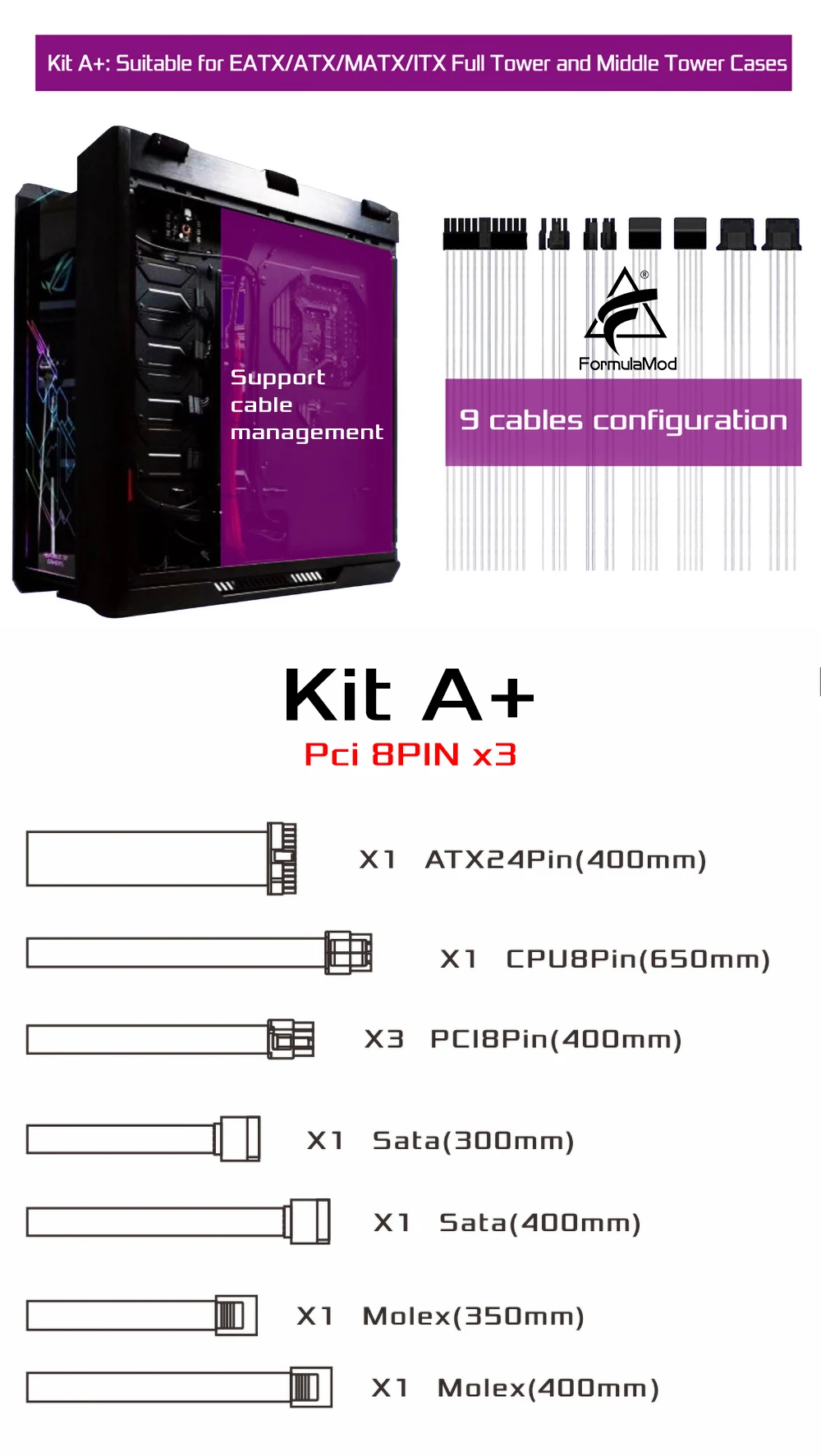

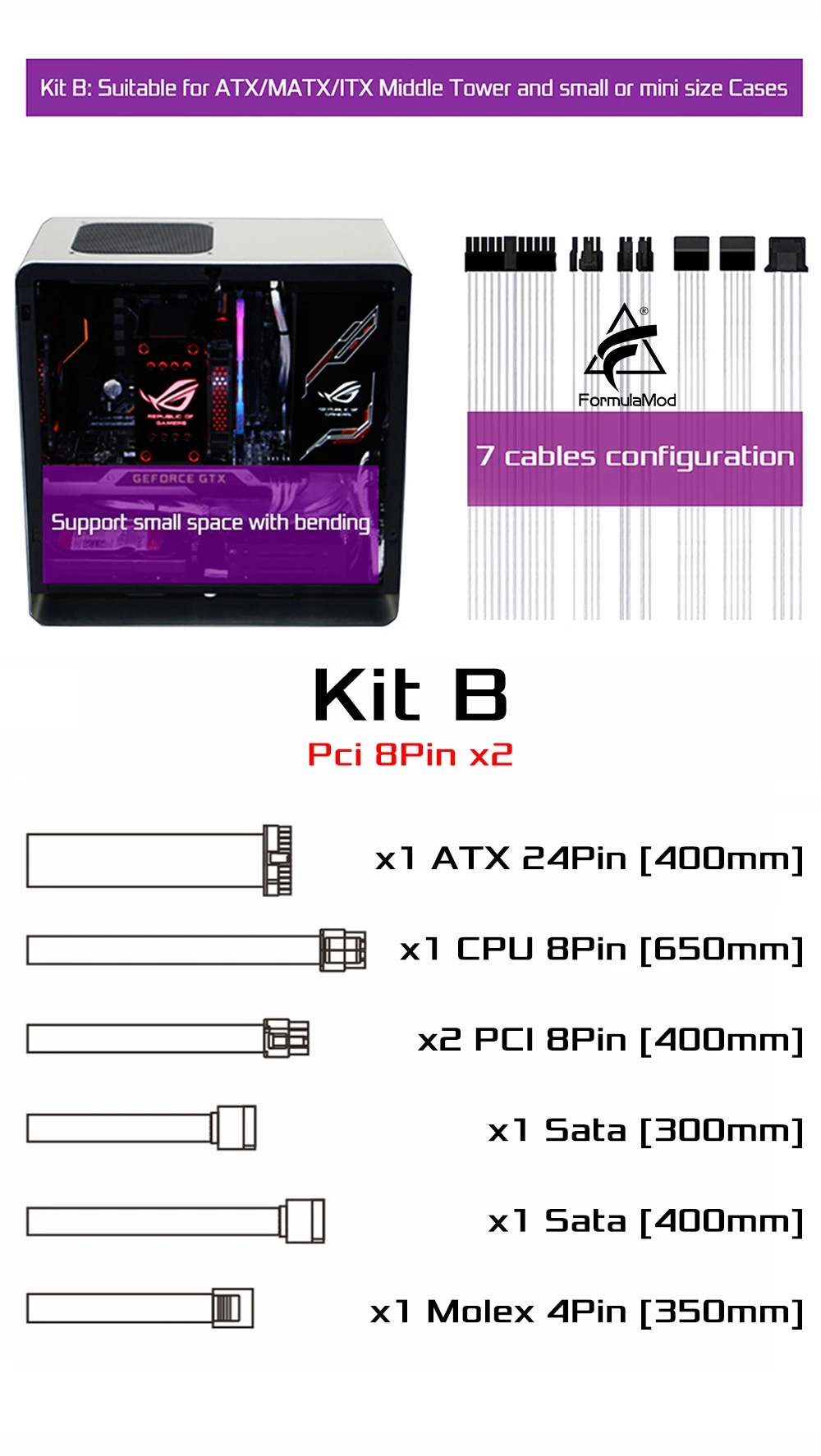

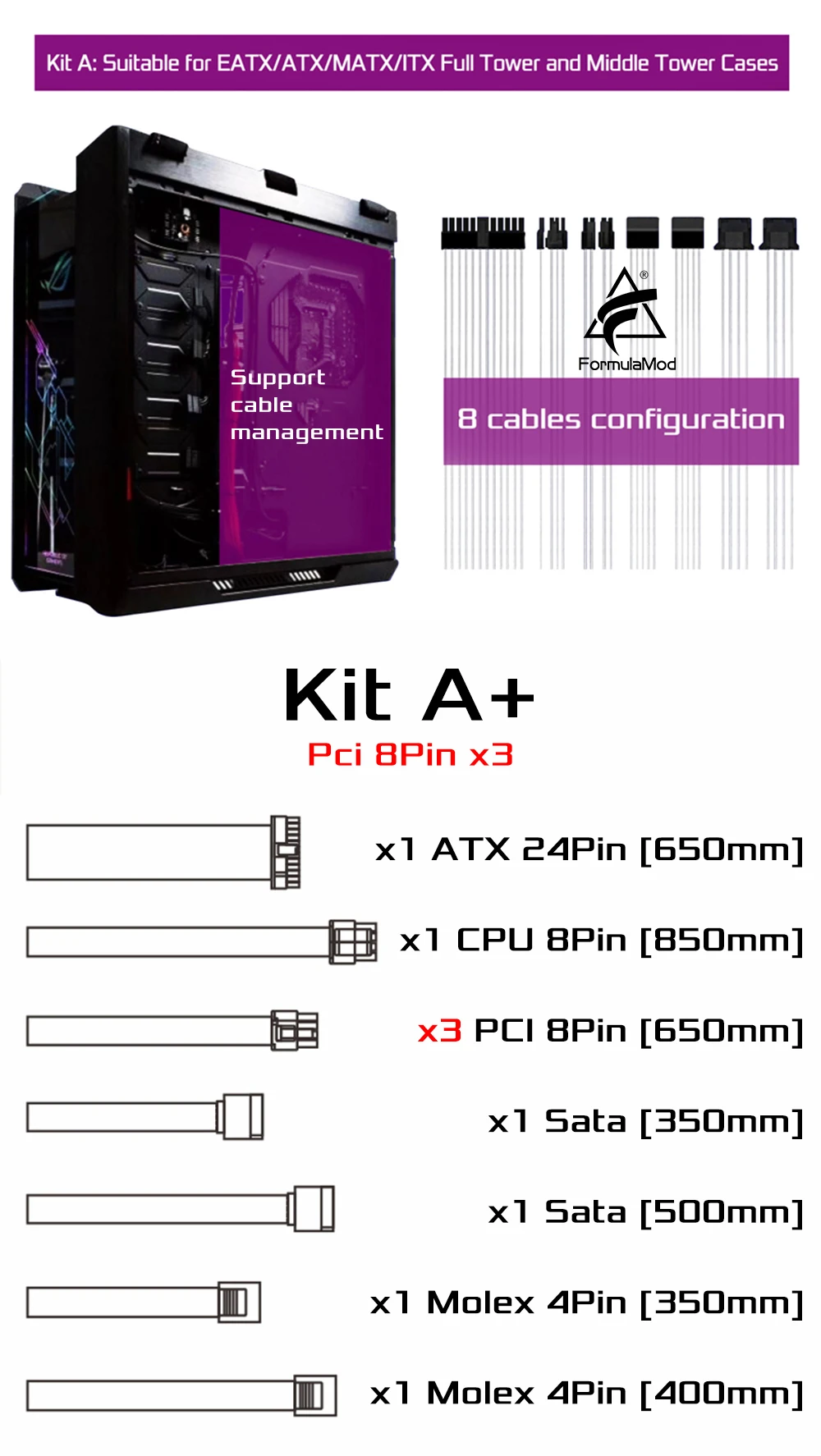

Cable Lengths and Quantities by Kit

ATX 24-pinA / A+ 1 × 650 mm
B 1 × 400 mm
EPS 4+4-pinA / A+ 1 × 850 mm
B 1 × 650 mm
PCIe 6+2-pinA 2 × 650 mm
A+ 3 × 650 mm
B 2 × 400 mm
SATA powerA / A+ 1 × 350 mm and 1 × 500 mm
B 1 × 400 mm and 1 shorter cable
Molex 4-pinA / A+ 1 × 350 mm and 1 × 400 mm
B 1 × 350 mm

Installation & Use

1
Read the PSU and component manuals. Confirm that your PSU manufacturer permits this exact kit, then check the lengths and connectors your build needs.
2
Shut down the PC, switch off the PSU, and unplug its AC power cord before disconnecting the original DC cables.
3
Identify the PSU and component ends of each cable. Follow the port labels and the manuals. Use the EPS lead for CPU power and the PCIe lead for graphics card power.
4
Check that each plug is fully seated before reconnecting AC power.

You’ll need a fully modular PSU confirmed for this kit and components with the corresponding power inputs.

FormulaMod Fm-BZXZ series example showing the flat SATA power plug at the device end of a blue cable

The flat SATA power connector goes to the device.

FAQ

How do I check ASUS, Seasonic, or Antec PSU cable compatibility?

Read the model number from the PSU label. If the revision is unclear, ask the PSU manufacturer to identify it and confirm cable compatibility. Keep using the original cables unless the manufacturer confirms this kit for that unit.

What changes between Kit A and Kit A+?

Kit A+ adds one 650 mm PCIe 6+2-pin cable. The other cables have the same lengths and quantities.

Which kit has the shorter motherboard, CPU, and GPU cables?

Kit B has shorter ATX, EPS, and PCIe leads than Kit A or A+. Measure the cable route in your case and compare it with the lengths above.

Does the kit include a 16-pin GPU cable?

The kits use PCIe 6+2-pin GPU cables. A 16-pin GPU cable is not included.

Does the kit come with a SATA splitter?

The standard A, A+, and B kits include two SATA power cables each. The SATA splitter is not included.

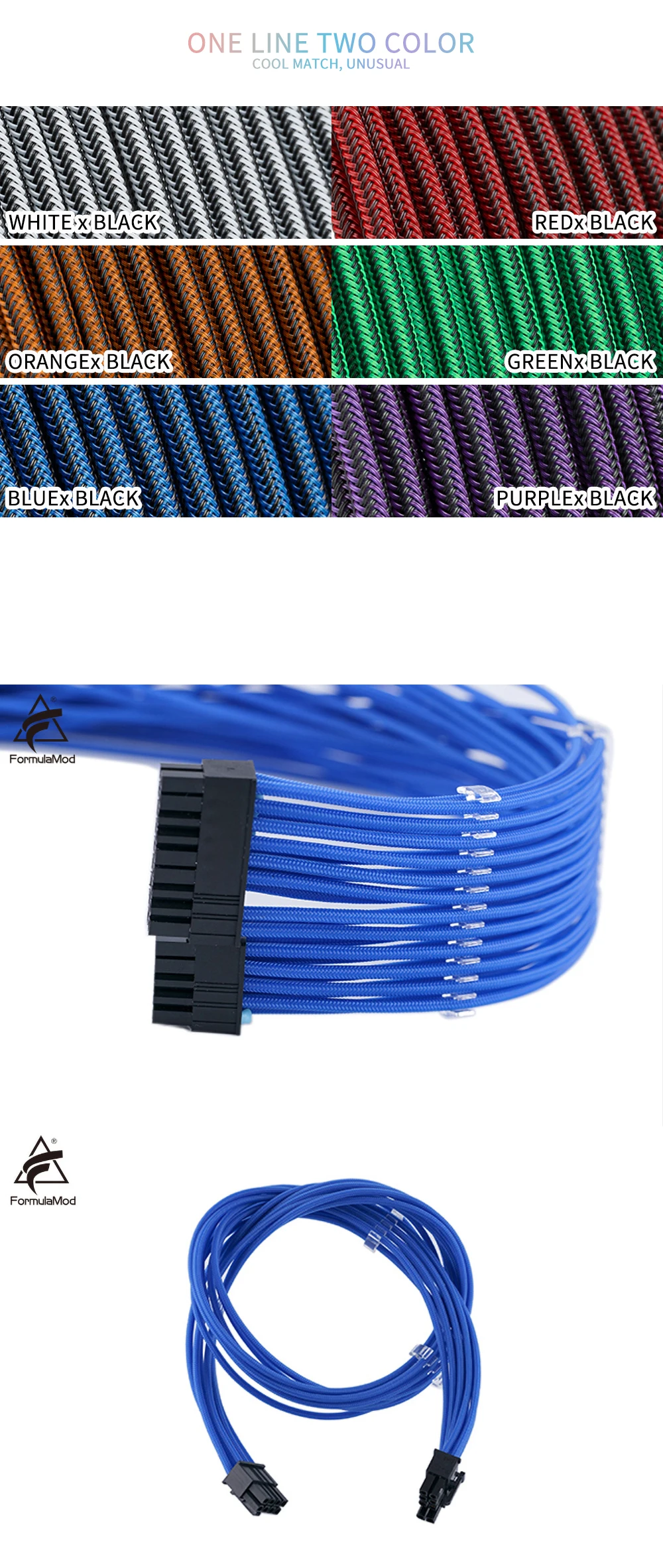

Sleeve Colors

FormulaMod Fm-BZXZ-ASUS orange braided sleeve swatch

Orange

FormulaMod Fm-BZXZ-ASUS red braided sleeve swatch

Red

FormulaMod Fm-BZXZ-ASUS white braided sleeve swatch

White

FormulaMod Fm-BZXZ-ASUS blue braided sleeve swatch

Blue

FormulaMod Fm-BZXZ-ASUS green braided sleeve swatch

Green

FormulaMod Fm-BZXZ-ASUS black braided sleeve swatch

Black

FormulaMod Fm-BZXZ-ASUS black and green two-tone braid close-up

Black × Green

FormulaMod Fm-BZXZ-ASUS sky blue braided sleeve swatch

Sky Blue

FormulaMod Fm-BZXZ-ASUS silver braided sleeve swatch

Silver

FormulaMod Fm-BZXZ-ASUS gray braided sleeve swatch

Gray

FormulaMod Fm-BZXZ-ASUS purple braided sleeve swatch

Purple

FormulaMod Fm-BZXZ-ASUS pink braided sleeve swatch

Pink

FormulaMod Fm-BZXZ-ASUS black and red two-tone braid close-up

Black × Red

Notes
  • Before ordering, check Compatibility above and get confirmation for your exact PSU model and revision.
  • If they use in other PSUs that are out of the list and cause any damage, we are not responsible for this.
