Bykski

ASUS TUF Gaming GT501 Waterway Board with DDC Pump | Bykski RGV-AS-GT501-P

stars, based on ( 0 ) review
items available
Contact Us
FormulaMod Official Store
Bykski · RGV-AS-GT501-P

Waterway board with a preinstalled DDC pump

The Bykski RGV-AS-GT501-P is an acrylic distro plate for custom water cooling in the ASUS TUF Gaming GT501. Its built-in channels route coolant between the components in your loop. This configuration includes a preinstalled DDC pump with a heat-dissipation cover so you can build around the plate with your choice of blocks and radiator.

Fits
ASUS TUF Gaming GT501
Pump
Preinstalled DDC
Ports
G1/4
Lighting
5V 3-pin ARGB

Compatibility

  • ✓ASUS TUF Gaming GT501

Check the exact case model before ordering. Bykski's example loop uses a CPU block and one GPU block.

Key Specifications

Plate modelRGV-AS-GT501-P
Configuration SKURGV-AS-GT501-P_DPC
Plate bodyClear PMMA acrylic
Mounting backplateAluminum alloy
Plate length × width322 × 130 mm
Port threadG1/4
PumpPreinstalled DDC with heat-dissipation cover
Lighting connector5V 3-pin ARGB (Bykski RBW)

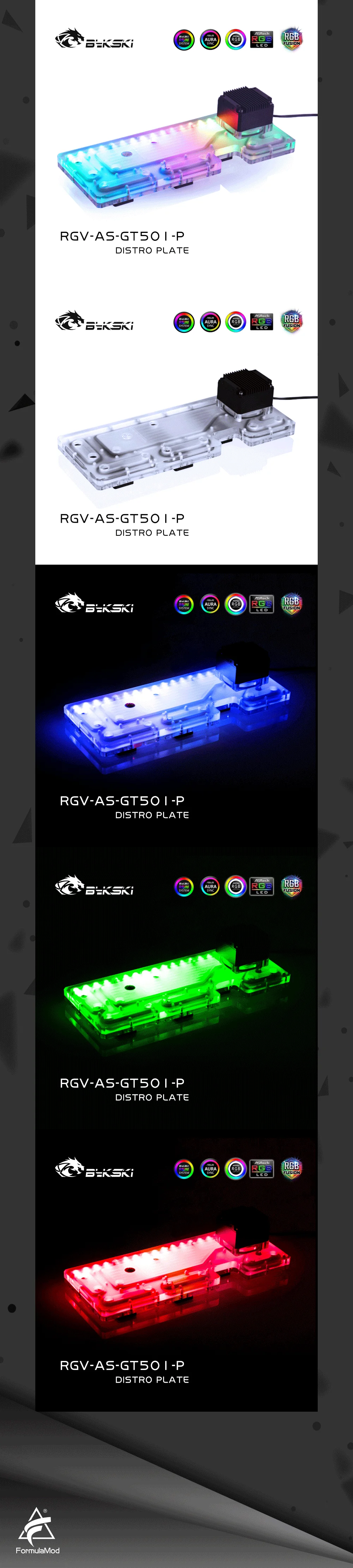

Bykski RGV-AS-GT501-P clear distro plate in an angled view with a black finned cover on the mounted pump

Which Version Do I Need?

GT501 distro plate + DDC pumpTHIS PAGE
Choose this combination if you plan to source the rest of the loop yourself.
Choose the kit if you want a bundled loop. Select the Intel or AMD CPU option and confirm the GPU block with FormulaMod before ordering.

What's in the Box

Distro plate with 5V ARGB lightingPreinstalled DDC pump with heat-dissipation coverMounting hardwareLighting sync cable

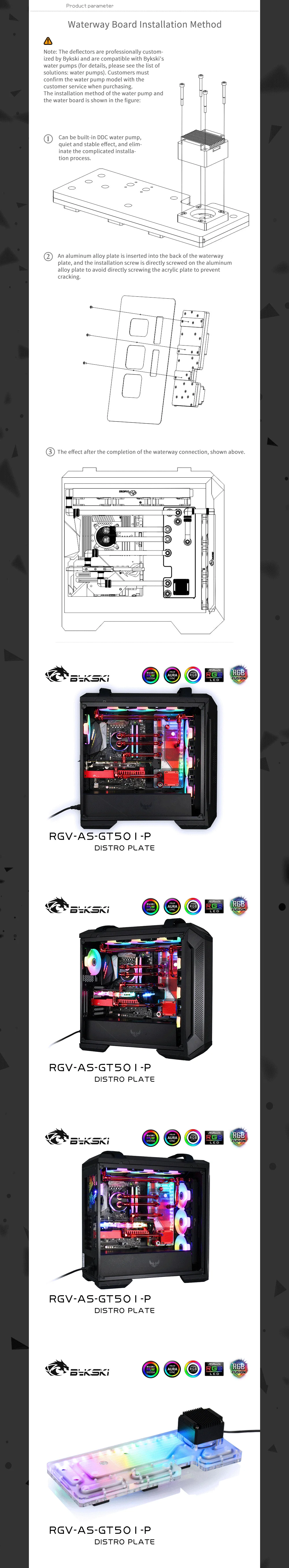

Installation & Use

1
Mount the distro plate in the GT501 using the screw points on the aluminum backplate.
2
Use G1/4 fittings and tubing to connect the plate to your blocks and radiator.
3
Fill the loop before running the pump. Keep the pump supplied with coolant while filling and leak-test with the rest of the PC unpowered.

You’ll also need water blocks, a radiator, G1/4 fittings, tubing, and coolant.

FAQ

Does this distro plate come with a pump?

Yes. The DDC pump and its heat-dissipation cover come preinstalled on the plate.

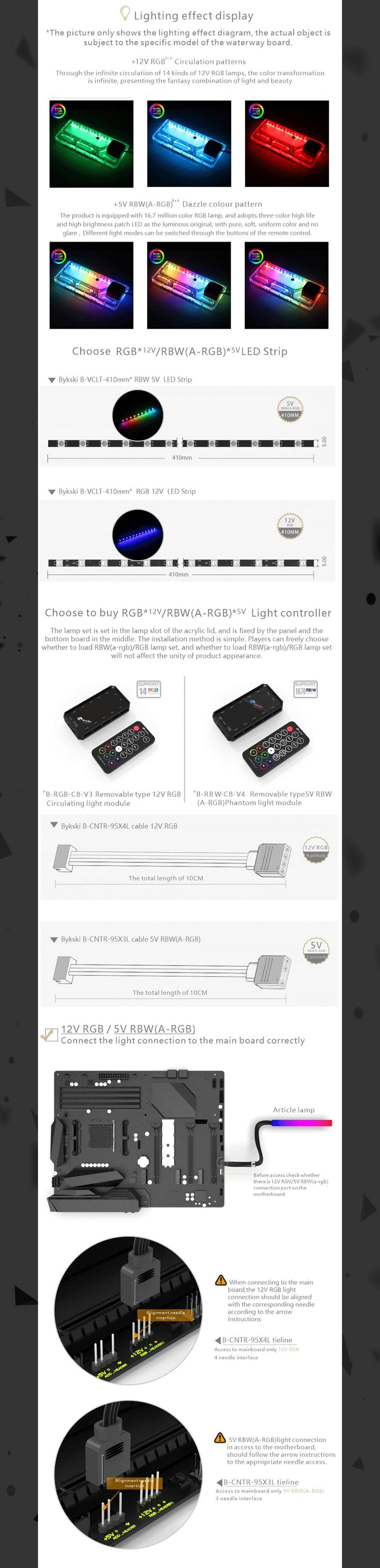

How do I connect the lighting?

Use the included sync cable with a 5V 3-pin ARGB motherboard header. Supply a compatible controller if your board has no 5V 3-pin ARGB header.

What fittings should I use?

Use G1/4 fittings that match the tubing in your loop.

Notes
  • This block is designed specifically for this case. Depending on the motherboard, blocks, fittings used, and layout, the connecting tubing may not appear as pictured (perfectly horizontal). Not responsible for any hardware damage. Use at your own risk.
  • As Bykski upgrades or adjusts the contents of the kit from time to time, such as product updates version, model or appearance, adjustments to the layout, etc..
  • If not notified in time, the Bykski's latest real object shall prevail.
