D5 Pump with PWM Speed Control for PC Water Cooling | Bykski B-UL-D5-X-V3
D5 pump with PWM speed control

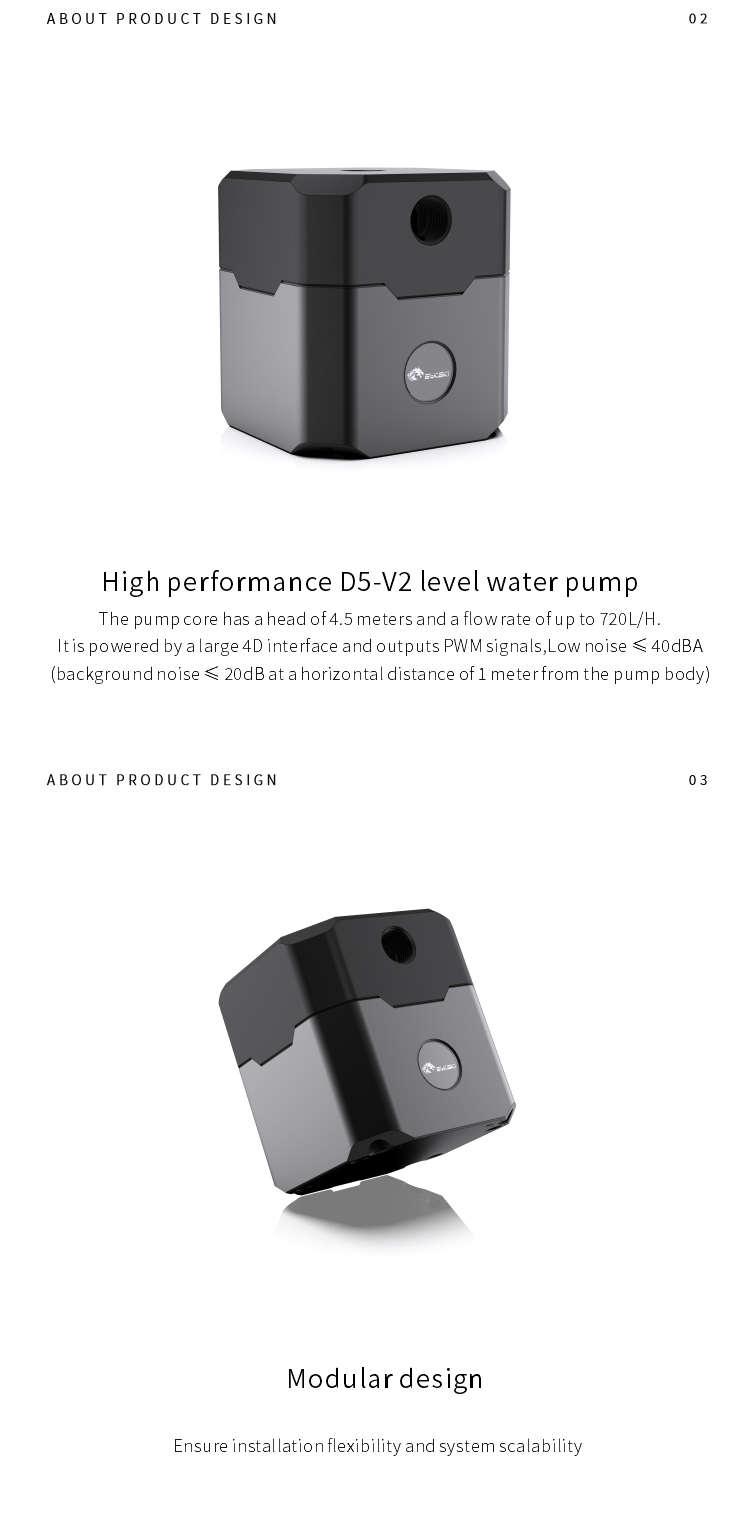

The Bykski B-UL-D5-X-V3 is a D5 pump assembly that circulates coolant in a custom PC liquid cooling loop. It uses a CP-D5PB-V2 pump core with a maximum flow rate of 720 L/h and a maximum head of 4.5 m. The pump runs on 12 V DC and has a separate PWM lead for speed control.
Fits & Connections
For custom PC liquid cooling loops.
- ✓G1/4 fittings at the top inlet and side outlet
- ✓A 4-pin Molex power connection and a motherboard PWM header for speed control
Choose fittings that match your tubing. Check the available mounting space with fittings and cables in place.
Design Highlights
Top inlet and side outlet

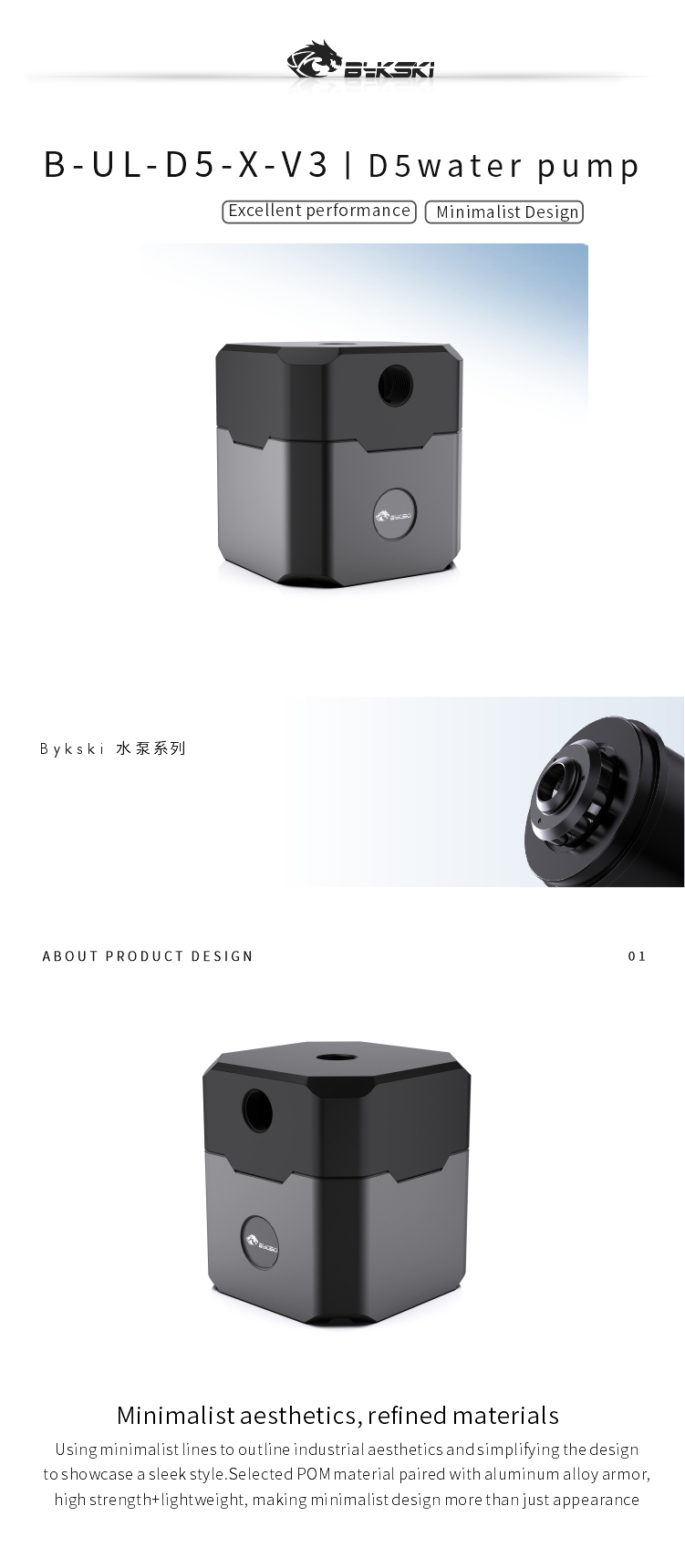

The POM pump top takes coolant through the upper port and sends it back into the loop through the side port. An aluminum alloy cover surrounds the motor.
Pump housing and clearance
The housing is 69 mm square at the base. Leave extra room above the pump for the inlet fitting and beside it for the outlet fitting and cable routing.
Separate power and speed control

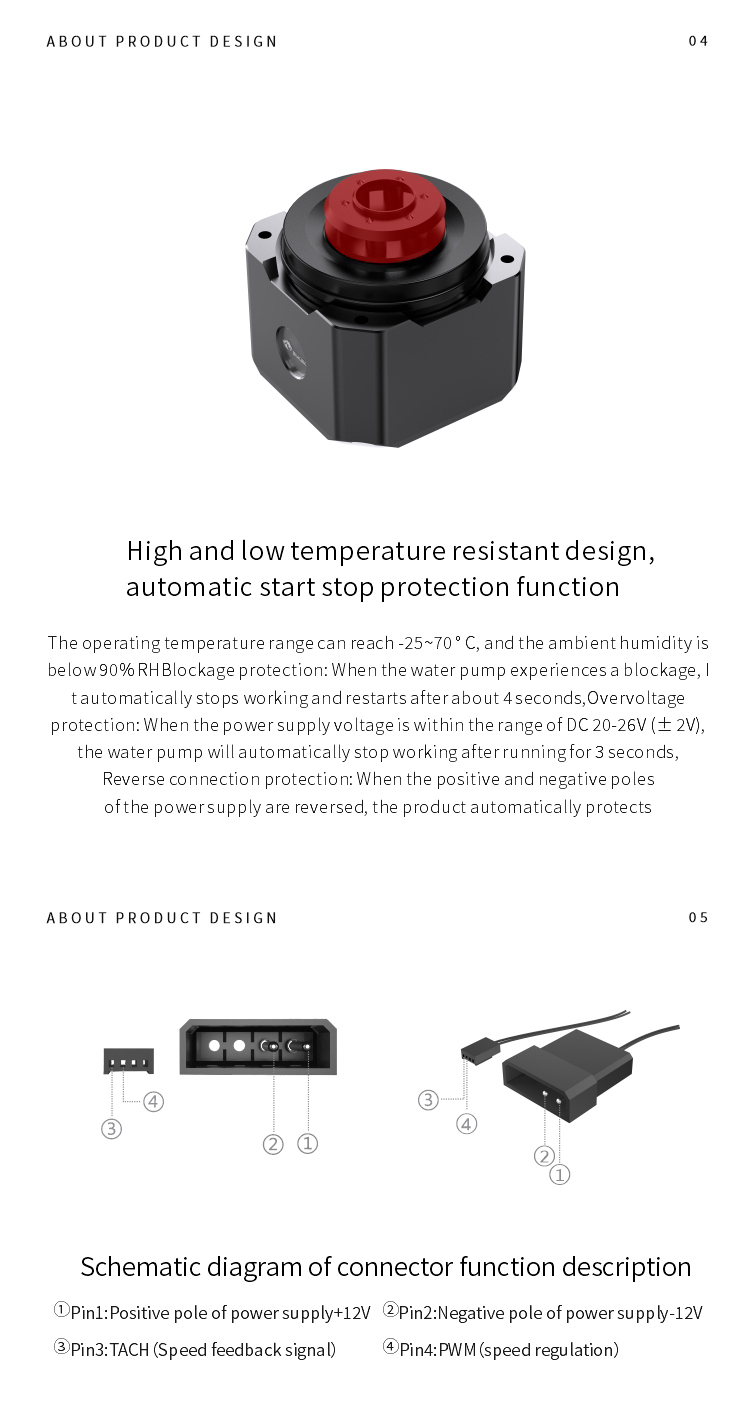

The 4-pin Molex plug draws power from the PC power supply. The separate 4-pin PWM plug sends speed feedback and takes speed commands from a motherboard PWM header.

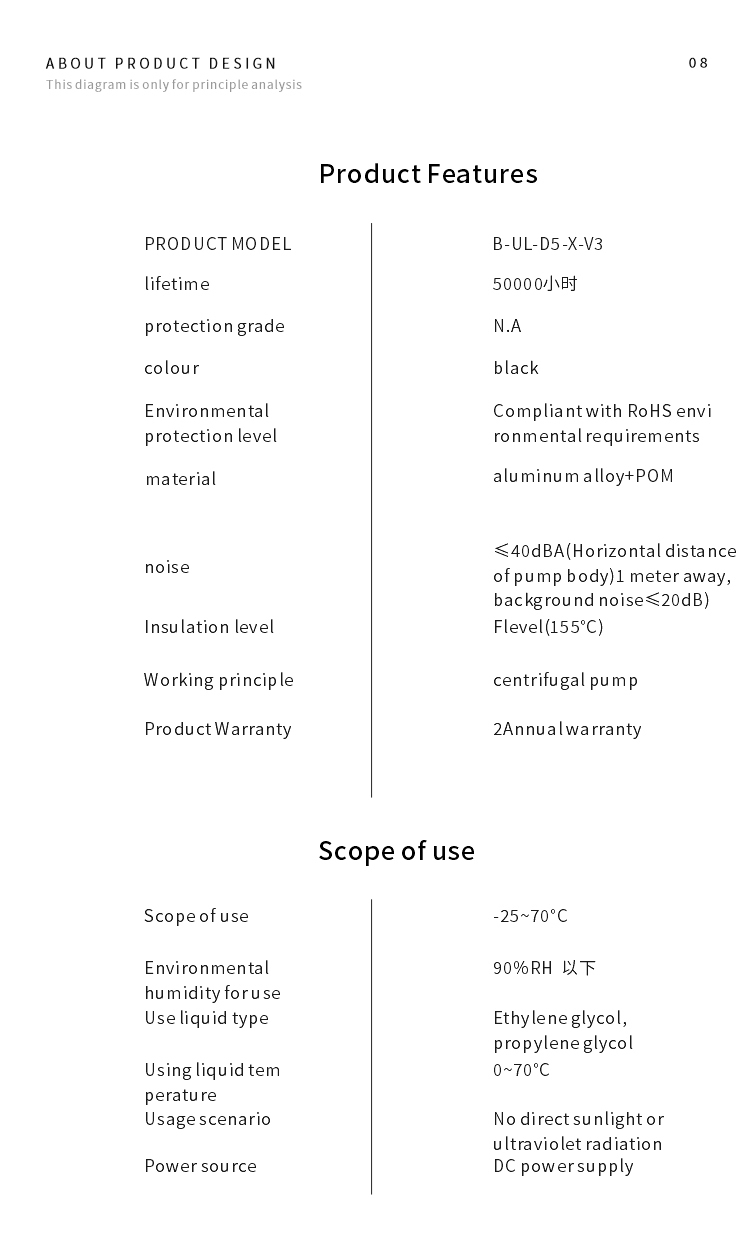

Key Specifications
| Model | B-UL-D5-X-V3 |
|---|---|
| Pump core | CP-D5PB-V2 |

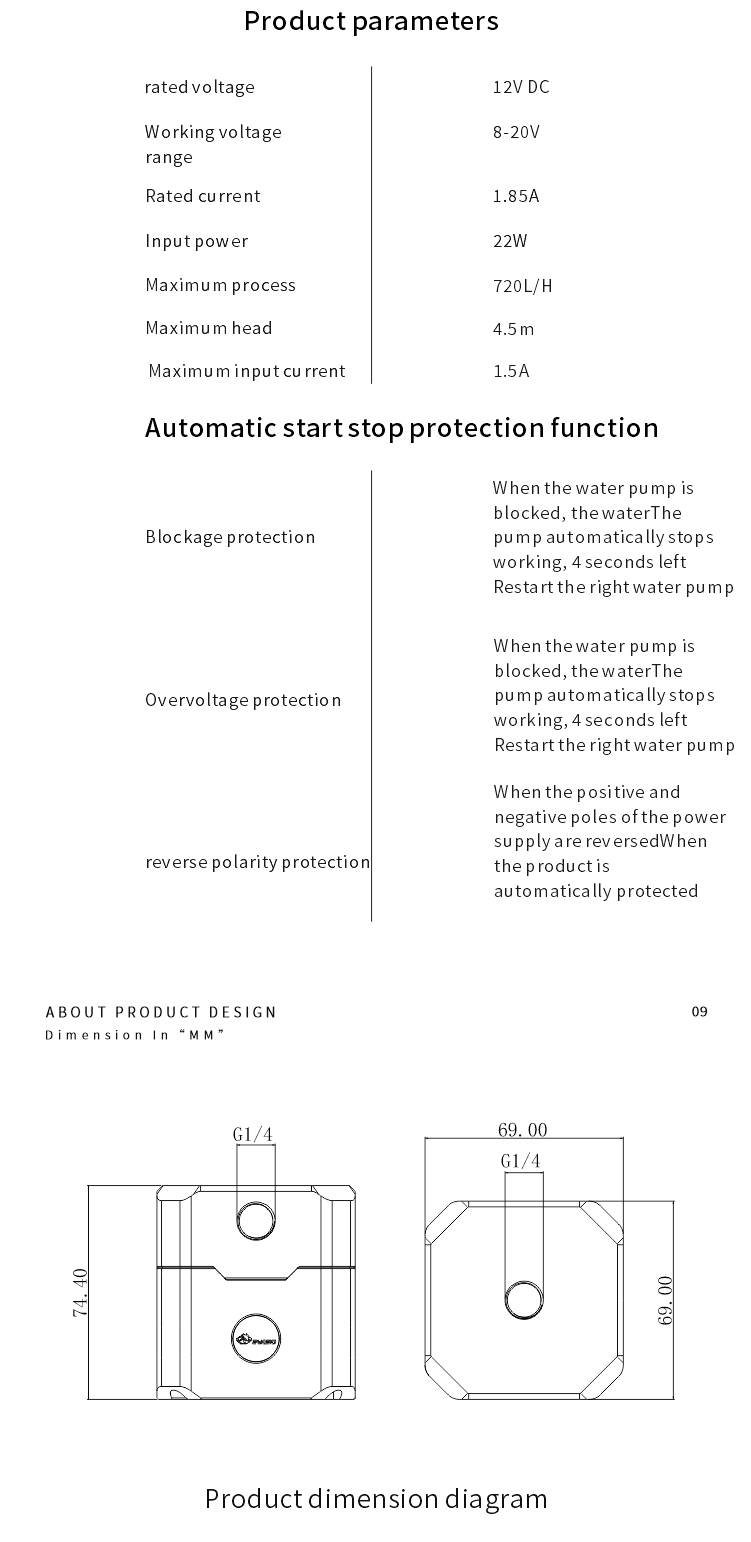

| Dimensions (W × D × H) | 69 × 69 × 74.4 mm |
| Port threads | G1/4 |
| Materials | POM pump top, aluminum alloy housing |
| Color | Black |
| Maximum flow rate | 720 L/h |
| Maximum head | 4.5 m |
| Rated voltage | 12 V DC |
| Input power | 22 W |
| Power connector | 4-pin Molex |
| Speed control | 4-pin PWM with speed feedback |
| Coolant temperature | 0–70 °C |
| Manufacturer-rated noise | ≤40 dBA at a horizontal distance of 1 m (background ≤20 dB) |
Which Version Do I Need?
What's in the Box
The assembly contains the CP-D5PB-V2 pump core, POM pump top, and aluminum alloy housing.

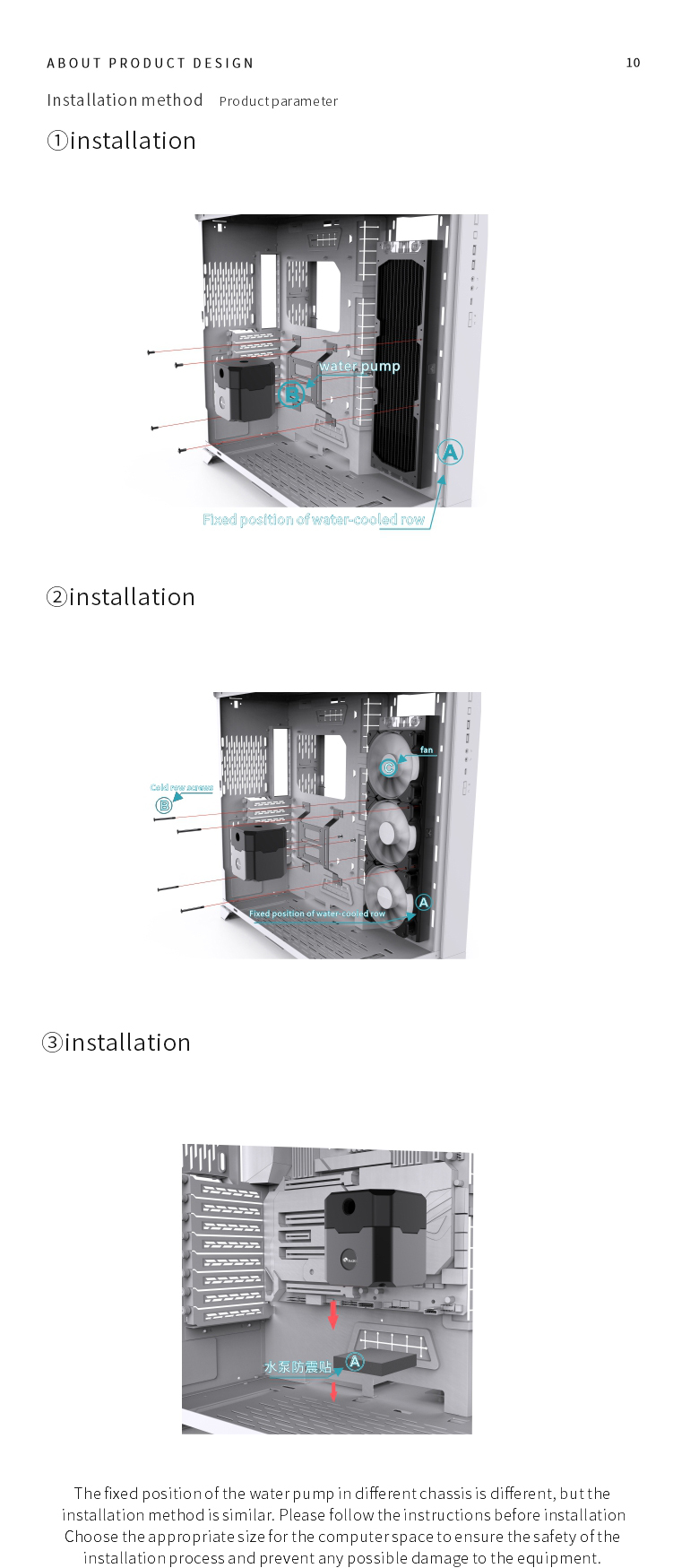

Installation & Use
For the reservoir-fed setup described above, use a reservoir, G1/4 fittings, matching tubing, coolant, a radiator, and the water blocks for your loop.
FAQ
What are the D5 pump dimensions?
The pump body is 69 mm wide, 69 mm deep, and 74.4 mm tall. Allow extra space for fittings and cables.
What are the maximum flow rate and head?
The pump is rated for up to 720 L/h of flow and a maximum head of 4.5 m.
How do I control pump speed?
Use the 4-pin PWM lead on a motherboard PWM header. The separate 4-pin Molex connector supplies power.
Is a pump top included?
Yes. The V3 is supplied as a complete pump assembly with its own POM pump top.
Where are the inlet and outlet?
The inlet is on top and the outlet is on the side. Both take G1/4 fittings.
- Use PC liquid cooling coolant based on ethylene glycol or propylene glycol.
- Never run the pump dry.
