Barrow

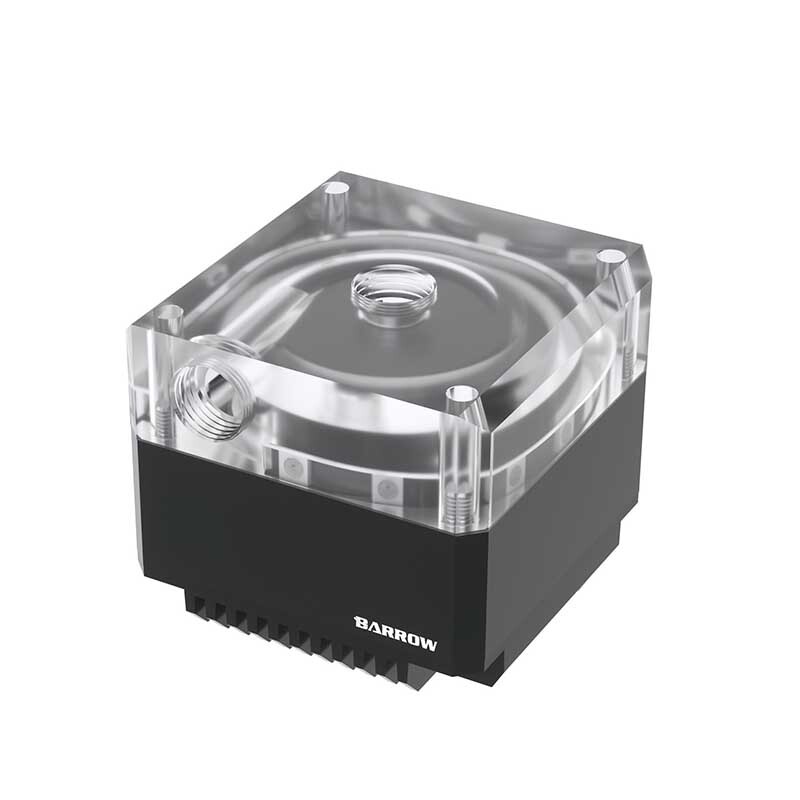

DDC-Style Pump for PC Water Cooling, Barrow SPB17-S-PLUS, 17W PWM, 5V ARGB
17 W PWM water cooling pump with an acrylic top
The Barrow SPB17-S-PLUS is a 17 W DDC-style pump that circulates coolant in a custom PC water cooling loop. It comes with an acrylic pump top and uses G1/4 fittings at the inlet and outlet. Use motherboard PWM control or set the speed by hand with the adjustment knob.
Fittings and Connections
- ✓G1/4 male fittings for the pump inlet and outlet
- ✓4-pin PWM motherboard header for automatic speed control
- ✓For motherboard lighting control, use the included adapter cable to connect the pump’s LRC 2.0 lighting lead to a 5 V 3-pin ARGB header.
Match the pump's separate power lead to the corresponding connector on your power supply.
The LRC 2.0 lighting uses its own 5 V ARGB lead, separate from the pump power and speed control connections.
Design Highlights

Finned aluminum housing
The fins along the base help dissipate heat from the pump circuitry.

Acrylic pump top included
The clear top comes installed on the pump. Its top and side ports connect the pump to your loop.
Key Specifications
| Model | SPB17-S-PLUS |
|---|---|
| Pump top | Clear PMMA acrylic |
| Housing | Finned aluminum alloy |
| Finish | Black or silver |
| Inlet and outlet | G1/4 female threads |
| Rated electrical input | 12 V DC, 1.4 A, 17 W |
| Speed control | 4-pin PWM lead or manual adjustment knob |
| Maximum speed | 4,000 RPM |
| Maximum flow | 960 L/h |
| Noise (Barrow specification) | Under 40 dB |
| Pump weight | 380 g |
| Lighting | Barrow LRC 2.0, 5 V ARGB |
Which Version Do I Need?
Choose the pump version based on how it connects to your loop.
What's in the Box
A standalone lighting controller is sold separately.
Installation & Use
For a complete loop, plan for G1/4 fittings, tubing, a radiator, water blocks, and coolant.
FAQ
Do I need to buy a separate pump top?
The acrylic pump top comes installed on the SPB17-S-PLUS.
How do I switch between manual and PWM speed control?
The pump ships in PWM mode. Turn the adjustment knob clockwise to enter manual mode. Turn it fully counterclockwise to return to PWM.
Do I need a separate lighting controller?
For motherboard lighting control, use the included adapter cable to connect the pump’s LRC 2.0 lighting lead to a 5 V 3-pin ARGB header. A standalone lighting controller is sold separately.
Which fittings do I need?
Both ports take G1/4 male fittings. Choose fittings that also match the tubing in your loop.
- In the event of an upgrade in the appearance of the product, without prior notice, the actual product will prevail.
