Astralcooler

360mm Copper Radiator for PC Water Cooling | Astralcooler AC-RAD-CO360

stars, based on ( 0 ) review
$51.59 piece
items available
Contact Us
FormulaMod Official Store
Astralcooler · AC-RAD-CO360

360 mm copper radiator for custom liquid cooling

The Astralcooler AC-RAD-CO360 is a 360 mm radiator that transfers heat from a custom liquid cooling loop to the air. Its copper core and fins sit in a 398.6 mm long frame, so check the available length at your case’s 360 mm radiator mount before ordering.

Fits
3 × 120 mm fans
Core and fins
Copper
Coolant ports
2 × G1/4

Compatibility

  • ✓Three 120 × 120 × 25 mm fans
  • ✓G1/4 liquid cooling fittings

Key Specifications

ModelAC-RAD-CO360
Radiator size class360 mm
Body length × width398.6 × 120 mm
Core and finsCopper
Fan size and count3 × 120 × 120 × 25 mm
Coolant ports2 × G1/4
Fin density17 FPI
Weight0.82 kg

Radiator Views

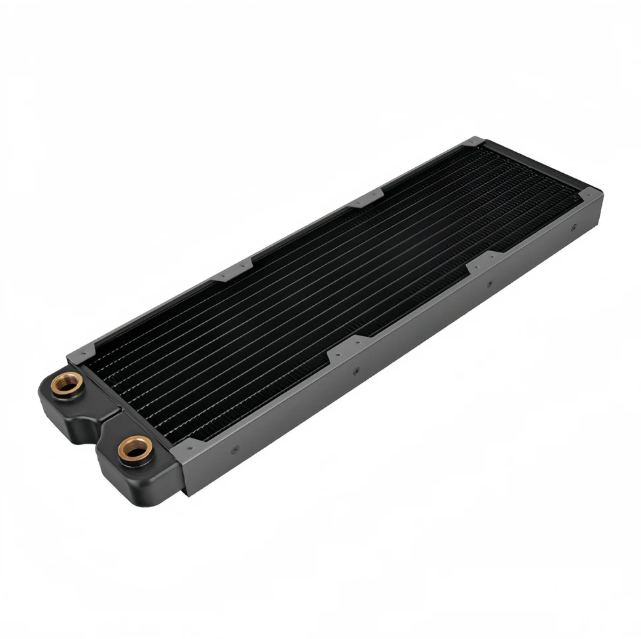

Astralcooler AC-RAD-CO360 radiator at an angle showing the fin face and both threaded ports
Astralcooler AC-RAD-CO360 radiator viewed from the closed end with the fin face visible

Which Version Do I Need?

Match the radiator size to your case’s mounting position and available clearance.

360 mm · AC-RAD-CO360THIS PAGE
For a 360 mm radiator position with room for the body and three 120 mm fans.
For a 480 mm radiator position with room for the larger body and four 120 mm fans.

What's in the Box

AC-RAD-CO360 radiator

FAQ

How long and wide is this 360 mm radiator?

The radiator body is 398.6 mm long and 120 mm wide.

What fittings do I need?

Use G1/4 fittings for the two coolant ports.

Notes
  • Before mounting, allow clearance for the fans and for the fittings and tubing at the port end.
