FormulaMod NCK1 Mix-Color Sleeved PSU Extension Cable Kit, 300mm 18 AWG ATX 24-Pin + PCIe 8-Pin + EPS CPU 8-Pin with Cable Combs
FormulaMod NCK1 Mix-Color Sleeved PSU Extension Cable Kit, 300mm 18 AWG ATX 24-Pin + PCIe 8-Pin + EPS CPU 8-Pin with Cable Combs
TL;DR: The NCK1 mix-color extension kit is a cosmetic upgrade that hides the original power supply cables behind sleeved versions of the same connectors. Each cable is 18 AWG with a 3 mm outer sleeve diameter, 300 mm long, terminated male 5557 to female 5559 so it drops in between a standard ATX PSU and...
Common Applications

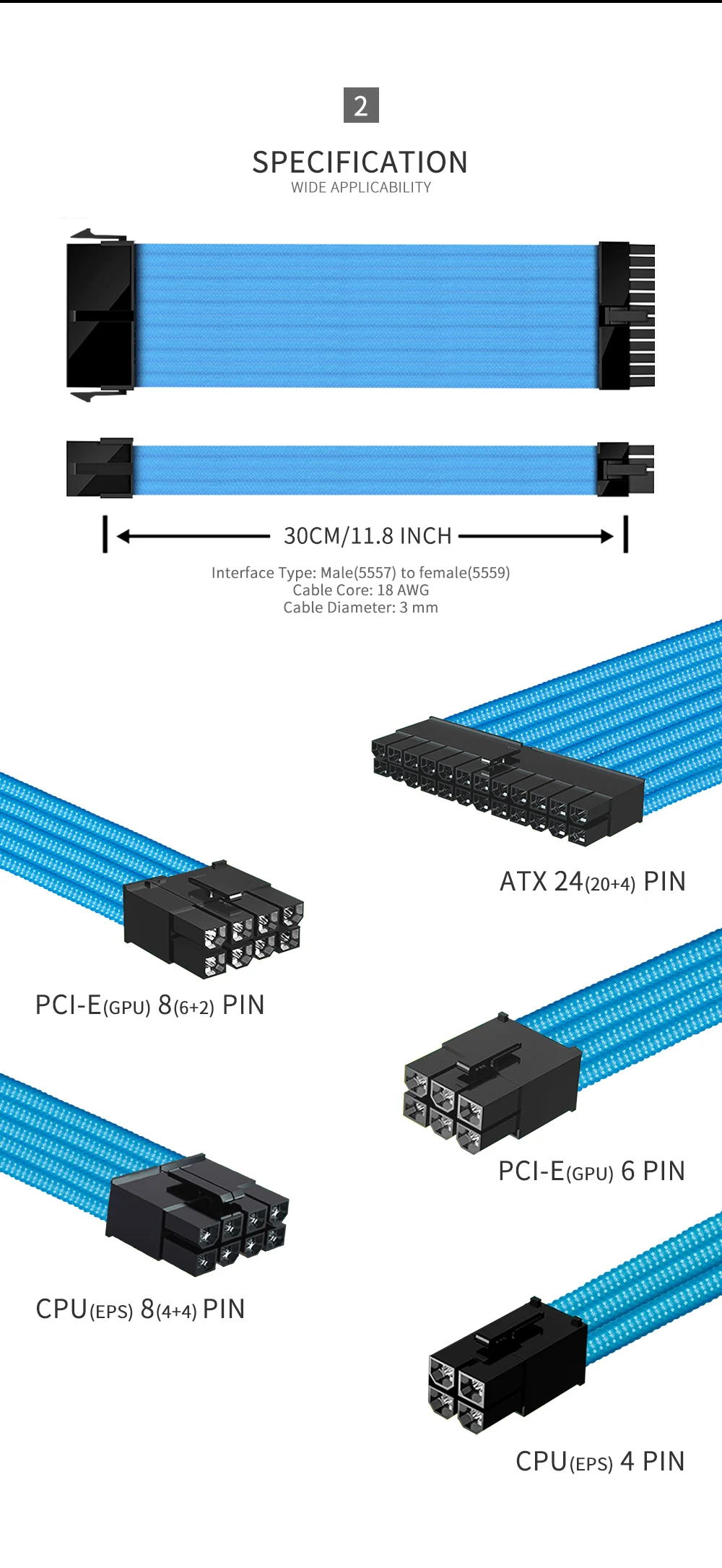

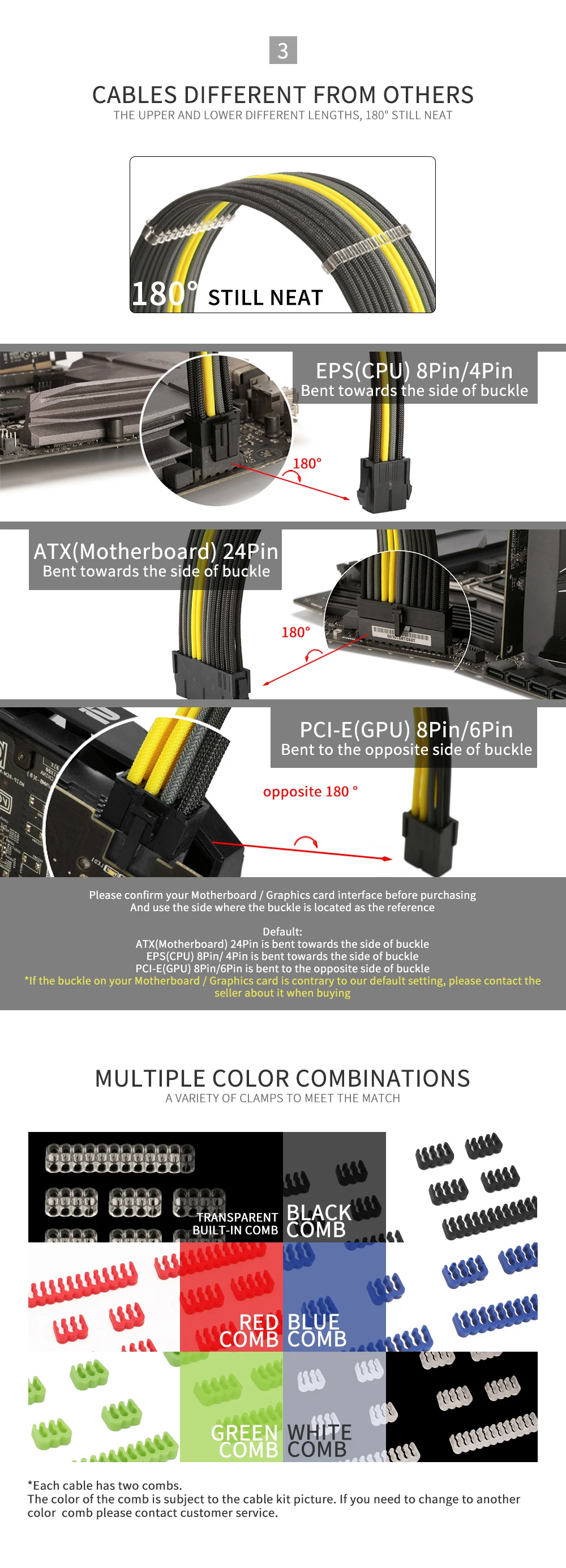

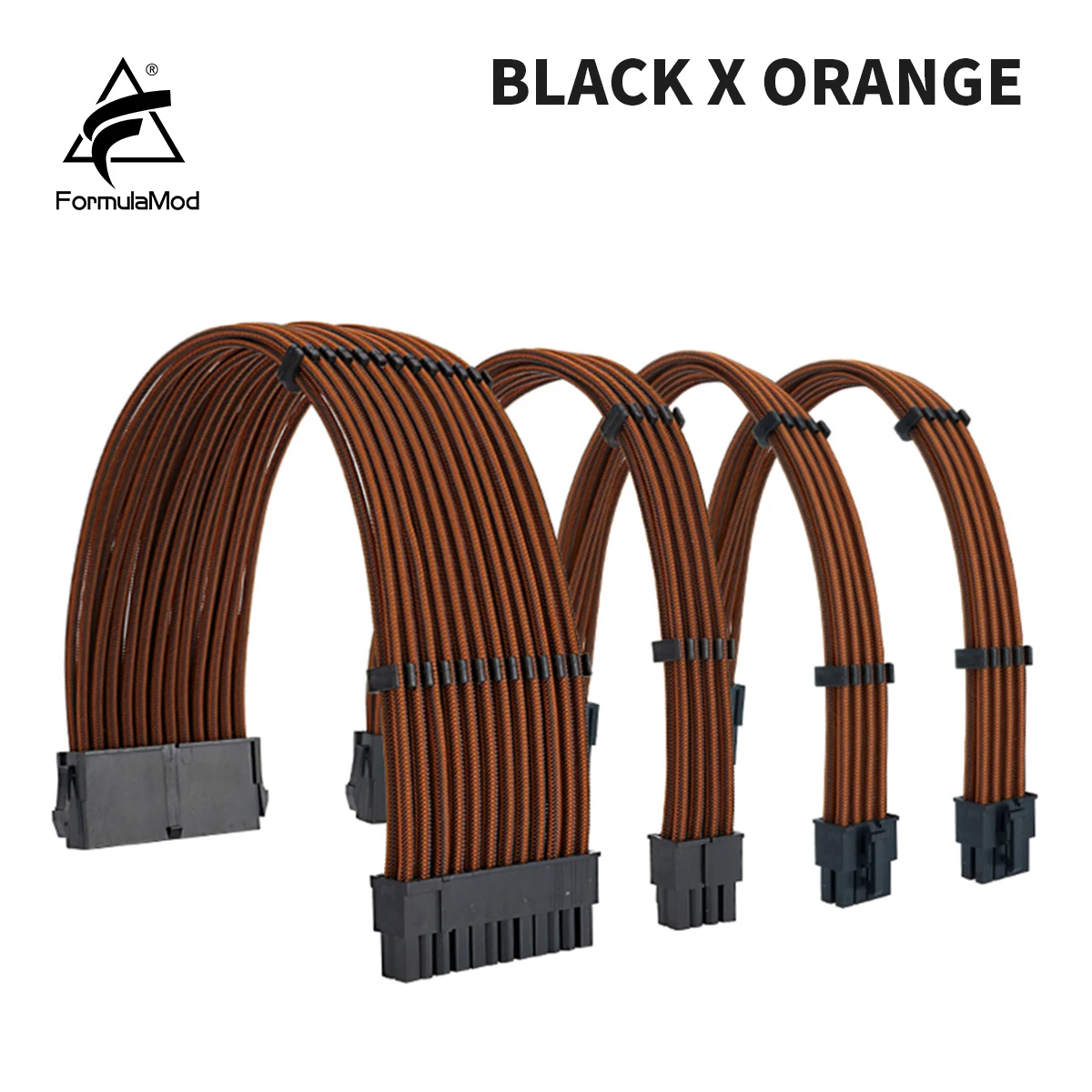

The NCK1 mix-color extension kit is a cosmetic upgrade that hides the original power supply cables behind sleeved versions of the same connectors. Each cable is 18 AWG with a 3 mm outer sleeve diameter, 300 mm long, terminated male 5557 to female 5559 so it drops in between a standard ATX PSU and the motherboard. The kit ships with one ATX 24-pin, plus PCIe 8-pin (6+2) and EPS CPU 8-pin (4+4) extensions, all pre-bent 180 degrees: the 24-pin and EPS lean toward the buckle side, the PCIe leans away to clear most GPU power tabs. Four cable combs per cable are included to keep wires aligned at the connector exit.
Frequently Asked Questions
Q: What is the length of each cable?
A: 300 mm. This is the working length between PSU-side connector and motherboard-side connector.
Q: What gauge wire is used?
A: 18 AWG, with a 3 mm outer diameter per individual sleeved wire.

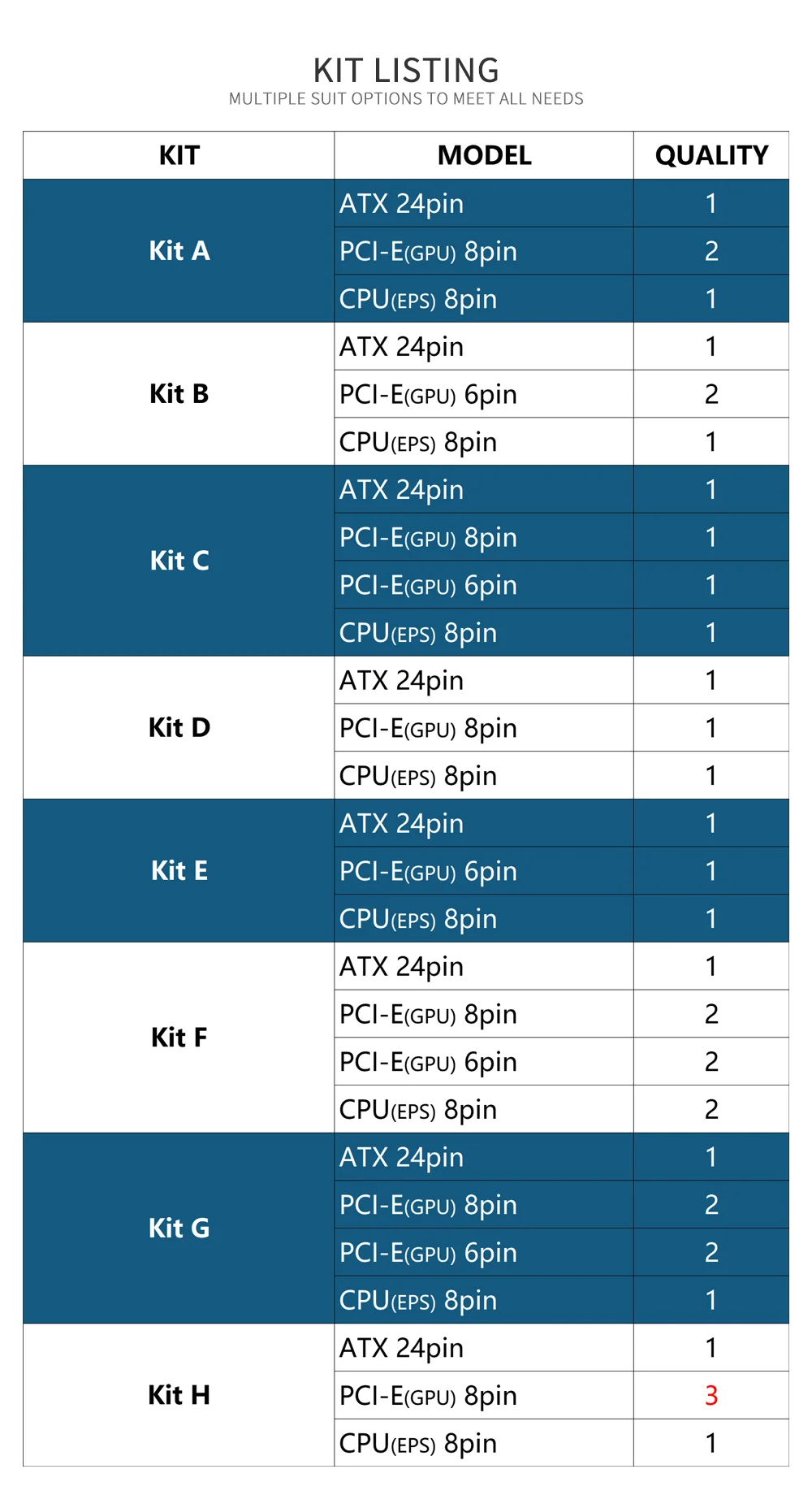

Q: Which connectors are included?

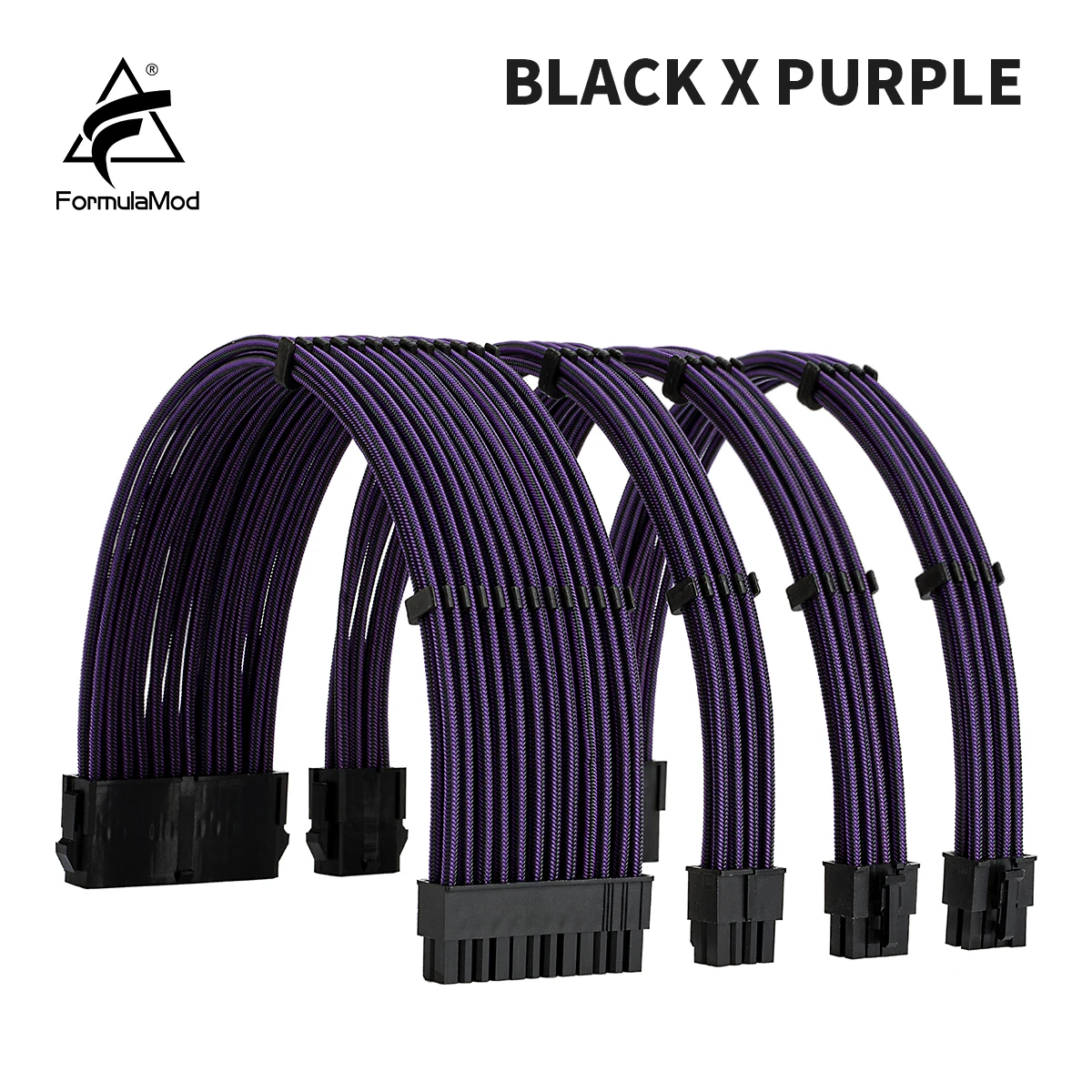

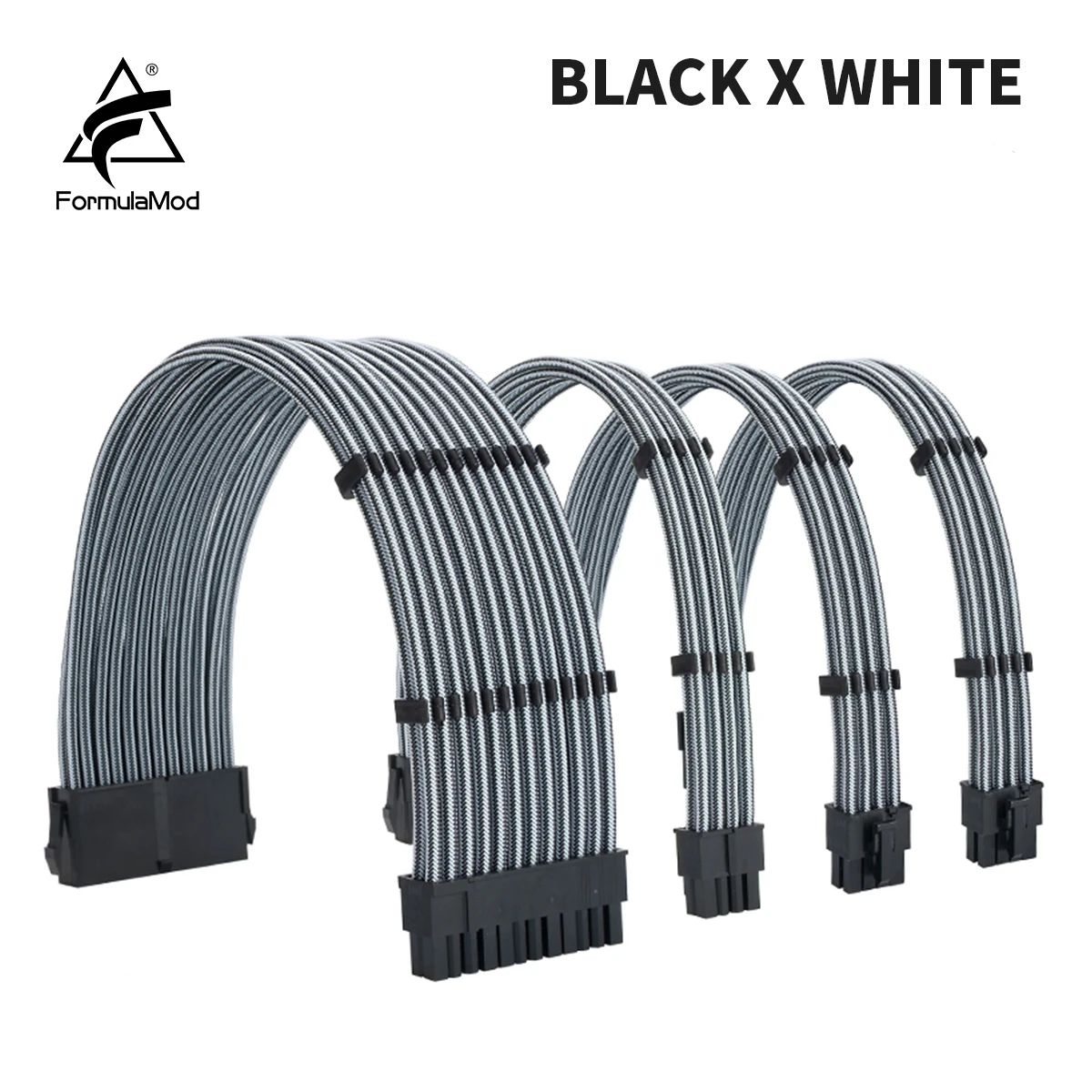

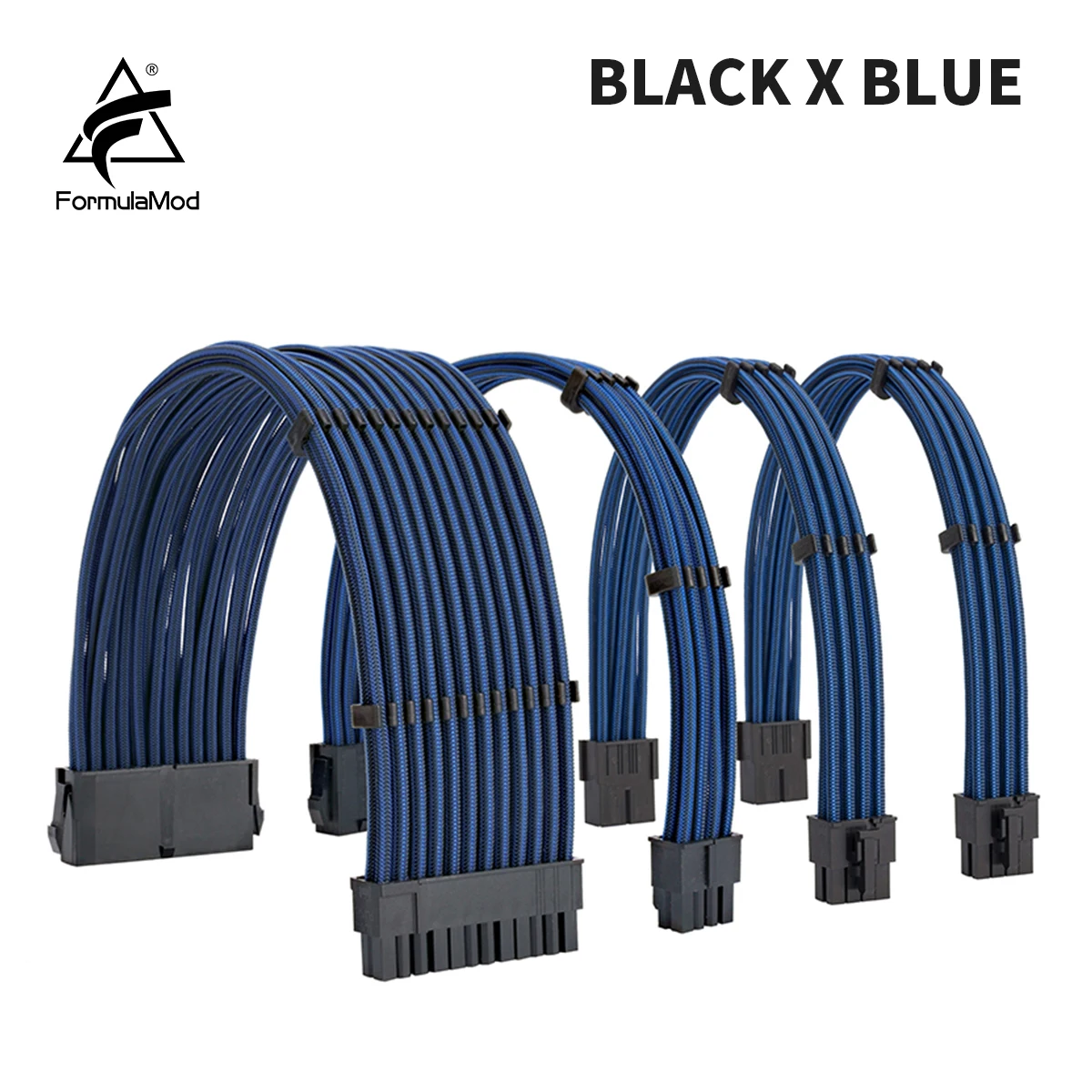

A: One ATX 24-pin, PCIe 6+2 8-pin and EPS CPU 4+4 8-pin extensions. The mix-color combo uses two complementary colors across the set.
Q: Are cable combs included?
A: Yes. Combs are pre-fitted near each connector to hold the individual wires in a flat row.
Q: Will this work with my PSU?
A: It mates with any standard ATX PSU that uses Molex 5557/5559 style ATX, PCIe and EPS connectors, which covers the large majority of ATX units.
