Barrow 515E-SDB Acrylic Waterway Board for Phanteks Enthoo 515E / 515ETG, LRC 2.0 5V A-RGB, Intel CPU, Single/Dual GPU

Barrow 515E-SDB Acrylic Waterway Board for Phanteks Enthoo 515E / 515ETG, LRC 2.0 5V A-RGB, Intel CPU, Single/Dual GPU

TL;DR: The 515E-SDB is a case-specific acrylic distribution plate cut to drop into the Phanteks Enthoo Luxe 515E and 515ETG chassis using the case's native mounting points. G1/4 ports are arranged for an Intel CPU block paired with single or dual GPU water blocks; dual-GPU layouts assume the second block...

Common Applications

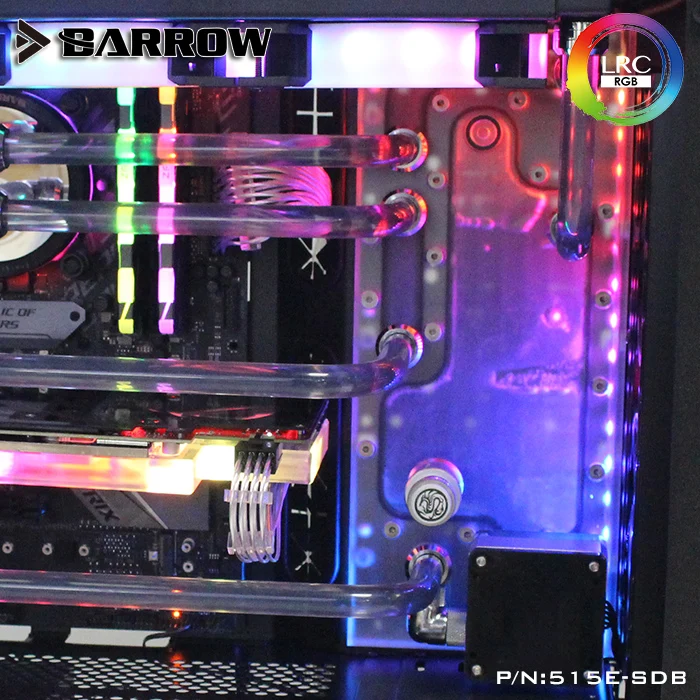

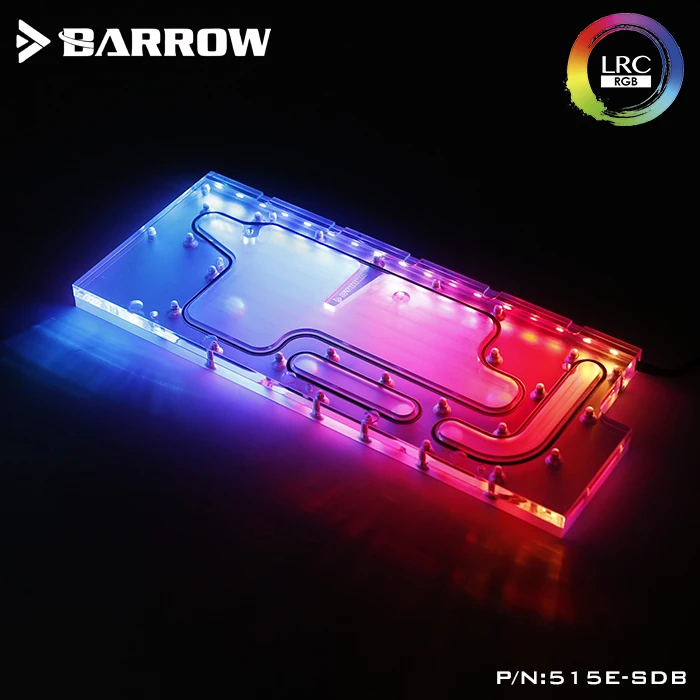

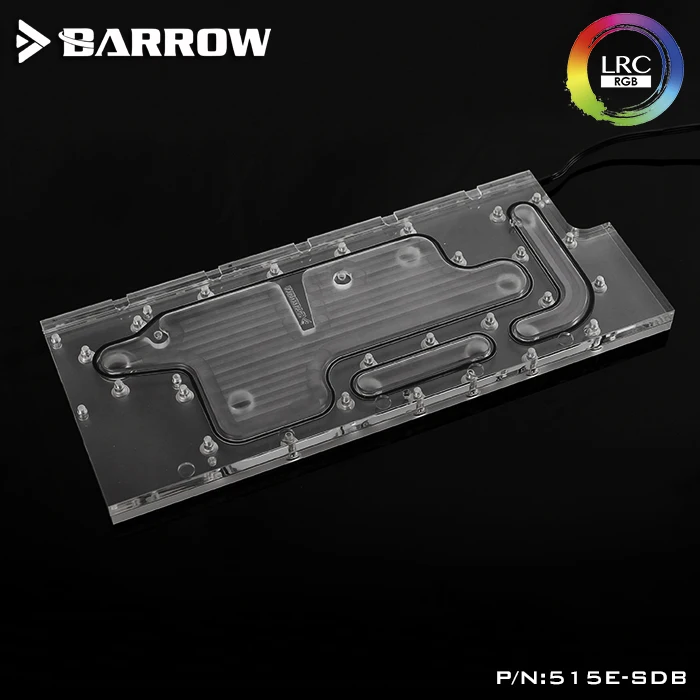

The 515E-SDB is a case-specific acrylic distribution plate cut to drop into the Phanteks Enthoo Luxe 515E and 515ETG chassis using the case's native mounting points. G1/4 ports are arranged for an Intel CPU block paired with single or dual GPU water blocks; dual-GPU layouts assume the second block sits in a standard SLI spacing. A Barrow LRC 2.0 5V 3-pin addressable RGB light strip is included and seats into the plate from behind. The strip must connect to a 5V 3-pin A-RGB header; a 12V 4-pin RGB header will damage the LEDs. Mounting screws are supplied; pump, fittings, and tubing are sold separately.

Frequently Asked Questions

Q: Which cases does this waterway board fit?

A: Phanteks Enthoo Luxe 515E and 515ETG only. It is not interchangeable with Eclipse, Evolv, or other Phanteks cases.

Q: What lighting standard does it use?

A: Barrow LRC 2.0, which is a 5V 3-pin addressable RGB strip. Do not plug into a 12V 4-pin RGB header or the LEDs will burn out.

Q: Does it support dual GPUs?

A: Yes, single and dual GPU layouts are supported. For dual GPUs confirm your block spacing matches the plate's outlet pattern before ordering.

Q: What is included in the box?

A: One acrylic distribution plate, one LRC 2.0 A-RGB strip, and the mounting screw set. Pump, fittings, blocks, and tubing are not included.

Q: What thread size are the ports?

A: Standard G1/4 inch on all ports, compatible with any G1/4 fitting.
