Barrow Waterway Boards For CoolerMaster H500P Case, For Intel CPU Water Block & Single GPU Building, H500P-SDB V1

Barrow H500P-SDB V1 Acrylic Waterway Board for Cooler Master MasterCase H500P, LRC 2.0 5V A-RGB, Intel CPU, Single GPU

TL;DR: The H500P-SDB V1 is a case-specific acrylic distribution plate cut for the Cooler Master MasterCase H500P. G1/4 ports are arranged for one Intel CPU water block and a single GPU water block routed through the plate's internal channels. A Barrow LRC 2.0 5V 3-pin addressable RGB strip seats behind...

Common Applications

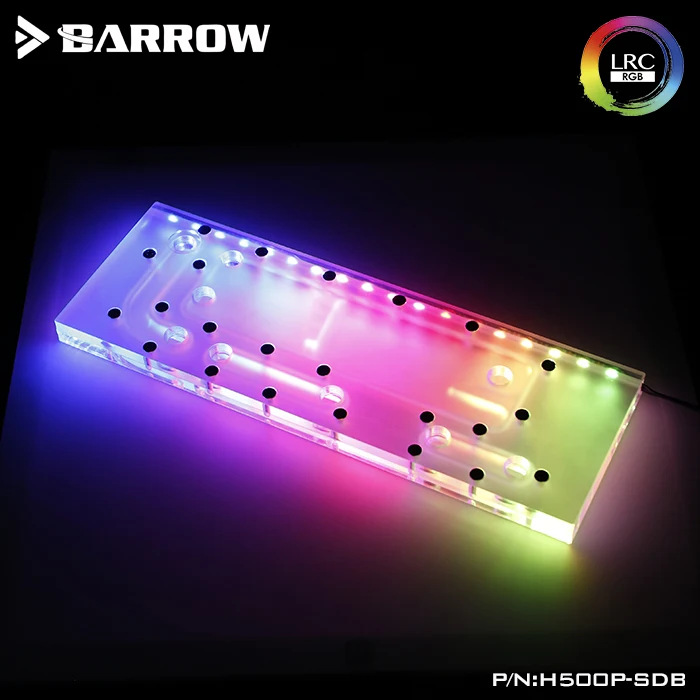

The H500P-SDB V1 is a case-specific acrylic distribution plate cut for the Cooler Master MasterCase H500P. G1/4 ports are arranged for one Intel CPU water block and a single GPU water block routed through the plate's internal channels. A Barrow LRC 2.0 5V 3-pin addressable RGB strip seats behind the plate and must connect to a 5V 3-pin A-RGB header on the motherboard; a 12V 4-pin RGB connector will burn out the LEDs. The plate mounts using the case's stock motherboard tray hardware. Mounting screws ship in the box; the pump, fittings, blocks, and tubing are sold separately.

Frequently Asked Questions

Q: Which case is this waterway board designed for?

A: Cooler Master MasterCase H500P. It is not interchangeable with the H500M or H500 Mesh, which have different mounting cutouts.

Q: What lighting connector does it use?

A: Barrow LRC 2.0, which is 5V 3-pin addressable RGB. A 12V 4-pin RGB header will damage the strip.

Q: Does it support dual GPUs?

A: No, single GPU layout only. SLI or dual-block setups need a different distribution plate.

Q: What CPU sockets are supported?

A: The plate routes coolant to the CPU block; socket compatibility is determined by the CPU water block you pair with it, not the plate itself.

Q: What is in the box?

A: One acrylic distribution plate, one LRC 2.0 A-RGB light strip, and a mounting screw set. No pump, fittings, blocks, or tubing included.
