Barrow TCBJ240-L / TCBJ360-L Aluminum Alloy External L-Bracket for 240mm and 360mm Radiators with 120mm Fan Pattern
Barrow TCBJ240-L / TCBJ360-L Aluminum Alloy External L-Bracket for 240mm and 360mm Radiators with 120mm Fan Pattern
TL;DR: The TCBJ240-L and TCBJ360-L are L-shaped aluminum alloy brackets that let a 240mm or 360mm radiator hang outside the chassis when there is no internal space left. The TCBJ360-L measures roughly 363.5 x 131.5 x 35mm and uses the standard 120mm fan hole pattern, so the bracket attaches directly...
Common Applications

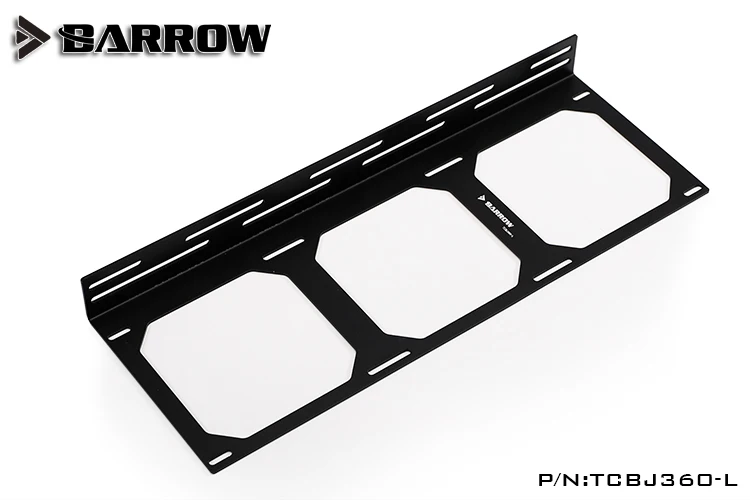

The TCBJ240-L and TCBJ360-L are L-shaped aluminum alloy brackets that let a 240mm or 360mm radiator hang outside the chassis when there is no internal space left. The TCBJ360-L measures roughly 363.5 x 131.5 x 35mm and uses the standard 120mm fan hole pattern, so the bracket attaches directly through the fan screws without modifying the radiator. Both versions can be flipped to mount on the rear, top, or side of a case, on a test bench, or on a wall stand, and they accept a push or pull fan configuration with 120mm fans. Mounting hardware is included; fans, radiator, and tubing are sold separately.
Frequently Asked Questions
Q: Which radiator and fan sizes does each bracket support?
A: TCBJ240-L fits 240mm radiators (2 x 120mm fans); TCBJ360-L fits 360mm radiators (3 x 120mm fans). 140mm radiators are not supported.
Q: What are the dimensions and material?
A: The TCBJ360-L is approximately 363.5 x 131.5 x 35mm and both versions are CNC-formed aluminum alloy. The TCBJ240-L is proportionally shorter for a 240mm radiator.
Q: What is in the box?
A: One L-bracket and the screws needed to attach it to the radiator's 120mm fan holes. Radiator, fans, and case-side fasteners are not included.
Q: Can I use this bracket for push-pull fans?
A: Yes. The bracket only occupies the radiator's outer fan hole face, so a second set of 120mm fans can still be added on the opposite side of the radiator.
Q: Will it fit any case?
A: The bracket is universal because it mounts to the radiator's 120mm fan pattern, not to a specific case. You still need clear panel holes or an open mounting surface on your chassis, bench, or wall.
