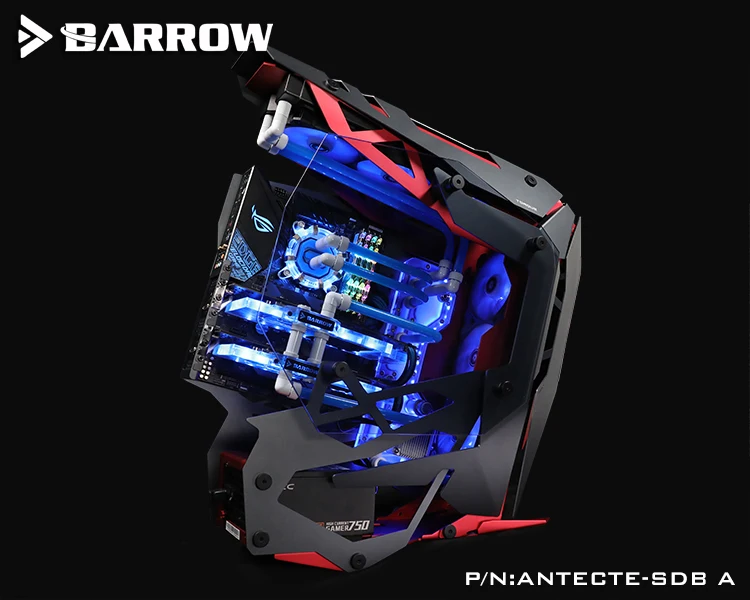

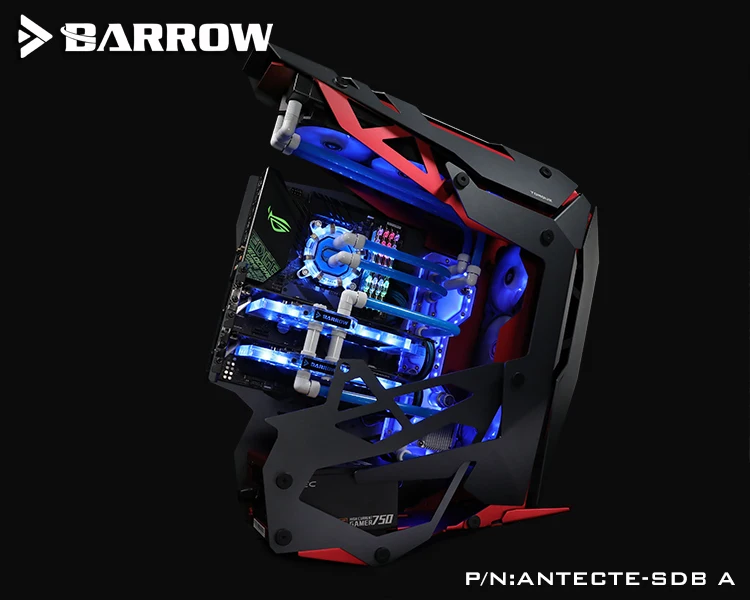

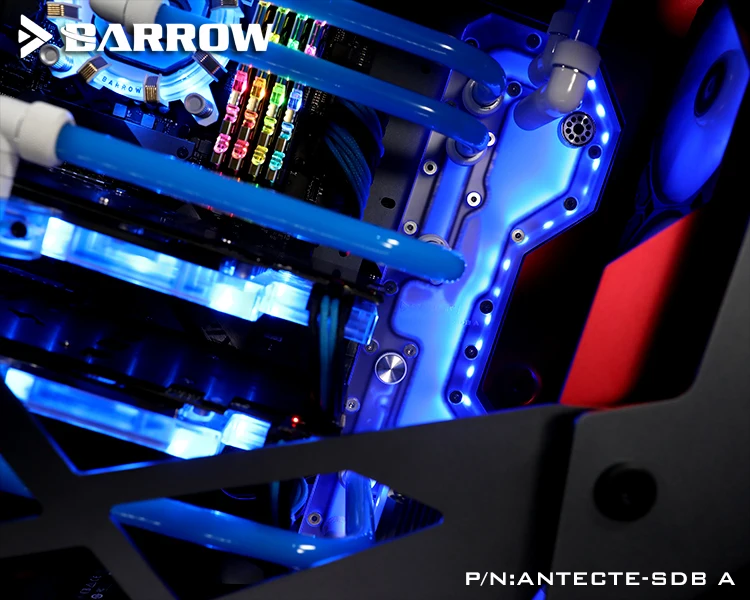

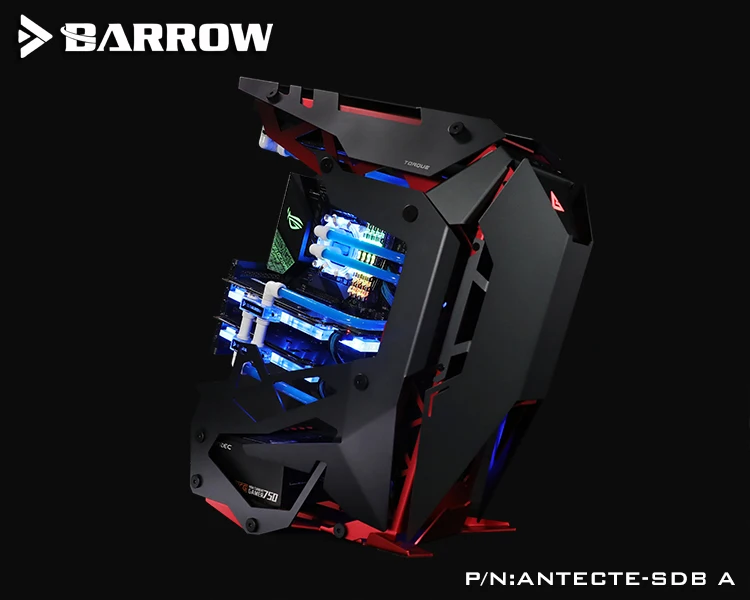

Barrow ANTECTE-SDB, Waterway Boards For Antec Torque Case, For Intel CPU Water Block & Single/Double GPU Building

stars, based on ( 0 ) review
$150.00now$130.88 piece
98 items available

TB2z9lgdr3XS1JjSZFFXXcvupXa_!!237156655bea664c4c4b4

ANTECTE-SDB A edition of ANTEC waterway plate add compatibility motherboard model:
ROG RAMPAGE VI EXTREME OMEGA
ROG RAMPAGE VI EXTREME
MSI MEG Z390 GODLIKE

The edition is compatible with original motherboard model at the same time.

Waterway Board Compatible Motherboard Model:
ROG STRIX Z390-E GAMING
ROG STRIX Z390-H GAMING
ROG STRIX Z370-F GAMING
ROG MAXIMUS X HERO
ROG MAXIMUS X HERO (WI-FI AC)
ROG MAXIMUS Ⅸ HERO
ROG STRIX Z370-E GAMING
ROG STRIX Z370-H GAMING
ROG STRIX B360-F  GAMING
ROG STRIX Z270F GAMING
ROG STRIX Z270E GAMING
ROG STRIX Z270H GAMING
ROG Maximus XI Hero
ROG Maximus XI Hero Black Ops
ROG MAXIMUS VIII EXTREME/ASSEMBLY
PRIME Z370-A
PRIME Z390-A
PRIME Z390-P
TUF Z390-PRO GAMING
TUF Z370-PRO GAMING
MAXIMUS VIII HERO
MAXIMUS VIII RANGER
Z170 PRO GAMING
Z170-AR

Recommended fittings:

Recommend to use products for waterway plate ANTECTE-SDB edition for ANTEC TORQUE case

NameModelQuantity
Barrow 90°Rotary Adapter (Male to Female)TWT90-v2.514
Barrow Dual G1/4" Adjustable Aqua Link Pipe (22-31MM)TSSXK-A013
Barrow G1/4" Male to Female Extender - 7.5mmTNYZ-G7.52
Barrow G1/4" Male to Female Extender - 10mmTNYZ-G101
Barrow G1/4" Male to Female Extender - 15mmTNYZ-G152
Barrow G1/4" Male to Female Extender - 20mmTNYZ-G204
Barrow Compression Fitting - OD: 14mm  Rigid Tubing (Smooth)TLGYKN-1414
Barrow Multicolor New CD Composite plate Finish Stop Plug FittingTLCDT-V13
Barrow 2016 New Manual automatic integrated Exhaust valveTPQZ-V21
Barrow G1/4" G1/4' 360°rotation offset adapterTX360PZ2
Barrow G1/4" Female to Female Extender - 20mmTBZT-A201
Barrow G1/4" Female to Female Extender - 30mmTBZT-A301
Barrow G1/4"Rotary Male To Male ExtenderTBX2D-021
BARROW 16 ways full function RGB and fan integrated controller (support to remote control and synchronization motherboard RGB)DK301-161
Barrow Dabel-a 360MM Dabel-a series Radiator (Thick:34MM)Dabel-a 3602
RGB full color speed regulation and lighting integrated fan with Hydraulic bearing PWM speed regulationBF04-PR6
14*10 Normal temperature type PETG Tube(ID: 10MM, OD: 14MM, Length: 500MM)PG1410-L7
Barrow Aurora PWM speed control through-hole 17W pump kit for waterway plateSPB17-T V21
Barrow New Edition Water Cooling LiquidSLYS-V23

The above fittings are for reference only.

Buyers can choose the same product according to specifications and categories.




Recommend to use products for waterway plate ANTECTE-SDB A edition for ANTEC TORQUE case

Recommended products
product nameProduct modelnumber
Barrow 90°Rotary Adapter (Male to Female)TWT90-v2.513
Barrow Dual G1/4" Adjustable Aqua Link Pipe (41-69MM)TSSXK-B011
Barrow Male to Female Extender - 7.5mmTNYZ-G7.51
Barrow G1/4" Male to Female Extender - 15mmTNYZ-G152
Barrow G1/4" Male to Female Extender - 20mmTNYZ-G202
Barrow G1/4" Male to Female Extender - 30mmTNYZ-G302
Barrow Compression Fitting - OD: 14mm  Rigid Tubing (Smooth)TLGYKN-1414
Barrow G1/4" Stop Plug Fitting- Hand TurnedTDS-012
Barrow Flat push type check valve(Male to Female)TTLPFG1
Barrow G1/4" Multicolor New CD pattern  Manual Exhaust ValveTPQ-V21
BARROW 16 ways full function RGB and fan integrated controller (support to remote control and synchronization motherboard RGB)DK301-161
Barrow 360MM Dabel-a series Radiator (Thick:34MM)Dabel-a 3602
Barrow LRC2.0 PLUS version PWM control speed 17w pump kit with special used for waterway plate through holeSPB17-T PLUS1
Barrow New Edition Water Cooling LiquidSLYS-V22
Barrow 14*10 Normal temperature type PETG Tube(ID: 10MM, OD: 14MM, Length: 500MM)PG1410-L8
Barrow RGB full color speed regulation and lighting integrated fan with Hydraulic bearing PWM speed regulationBF04-PR6
The above list only shows applicable connector specifications, players can choose other products according to the above product specifications

5c667a7407a125bda95c4b037d5cbe712603d095cbe7126a4083 (1)5cbe7127501bd
5bda95cfeb2558

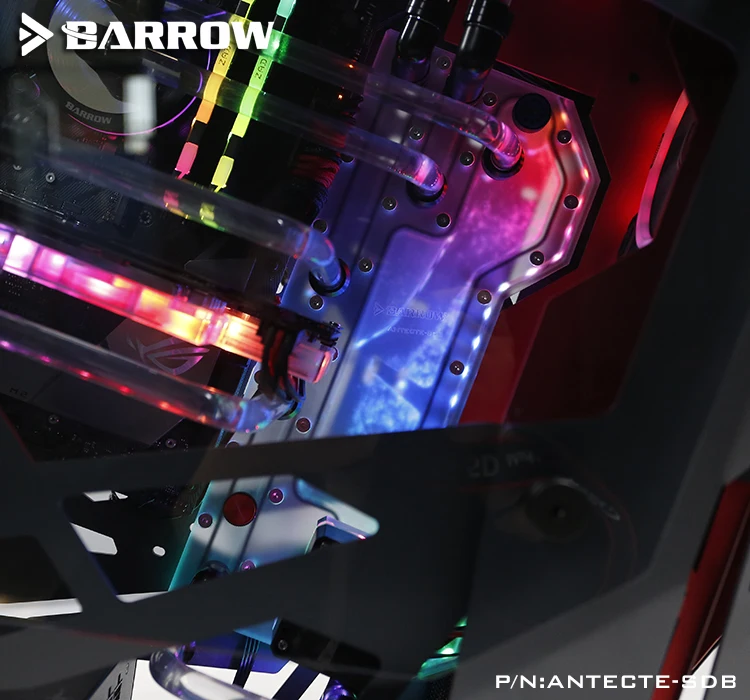

ANTECTE-SDB:
9101112


ANTECTE-SDB A:
O1CN01HALseF1ricEskyAep_!!23715665O1CN01a2WY5M1ricExHXThR_!!23715665O1CN01dQRI3w1ricEn1wLNt_!!23715665O1CN01VIaVTY1ricEuJ6iSu_!!23715665O1CN01eoKF6S1ricDVn5ogY_!!23715665O1CN01GnWbBq1ricDYK8HWh_!!237156655cda16077de29
HTB1JJ6bXgmH3KVjSZKzq6z2OXXac
5c4ed62194c5f

5bda95ff4d532

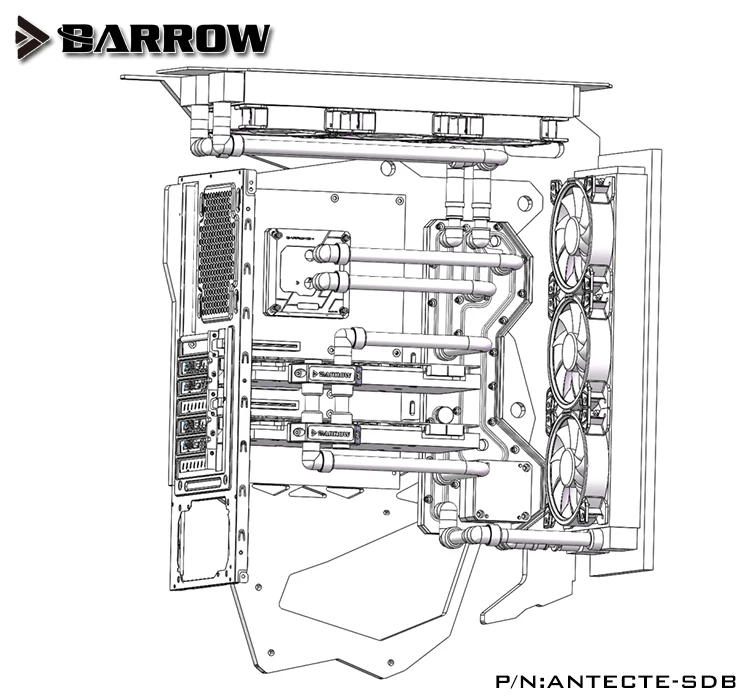

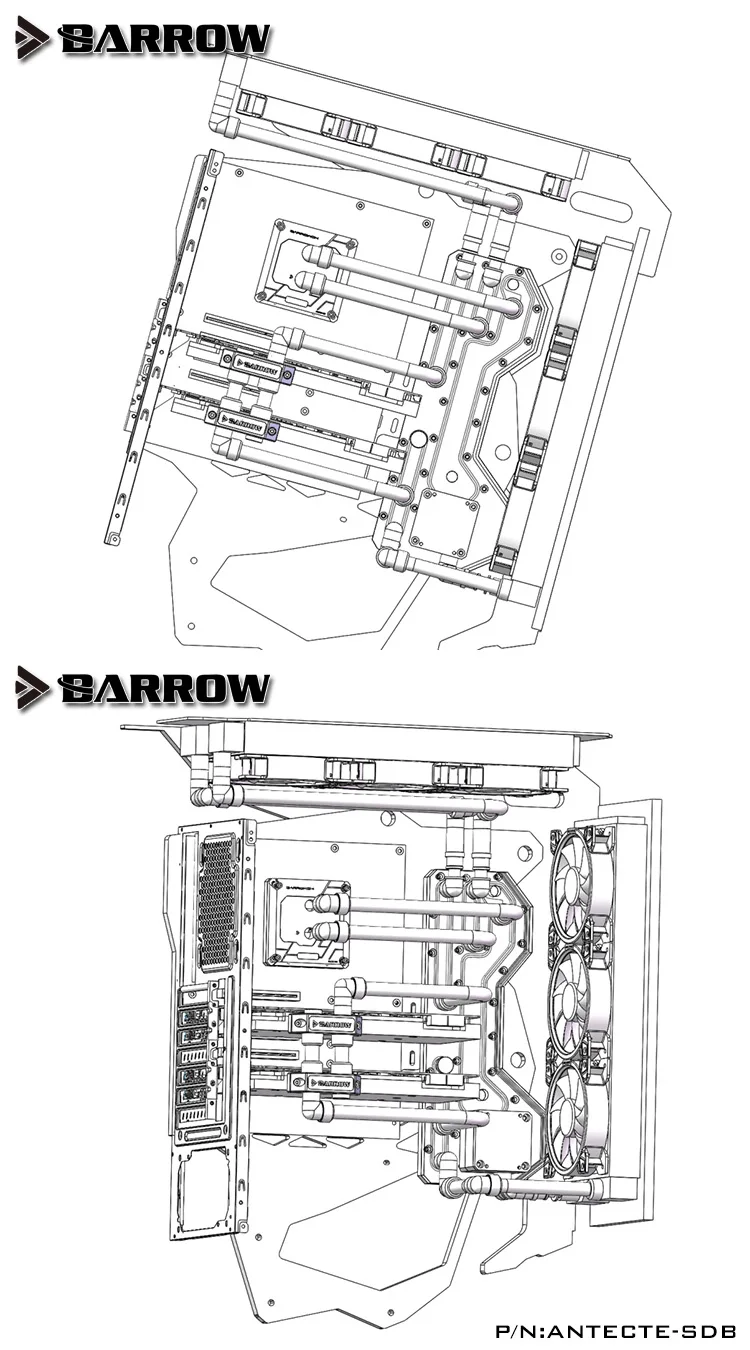

ANTECTE-SDB:
5bdbf18b37a7f 5bd800fb4842b




ANTECTE-SDB A:
O1CN011ricBTzKKIwyveS_!!23715665
111
1. When installing the waterway board, fix it slightly. When the pipeline is set up, it is completely fixed.
2. Recommended installation method: screw installation, including M4*8 mounting screws

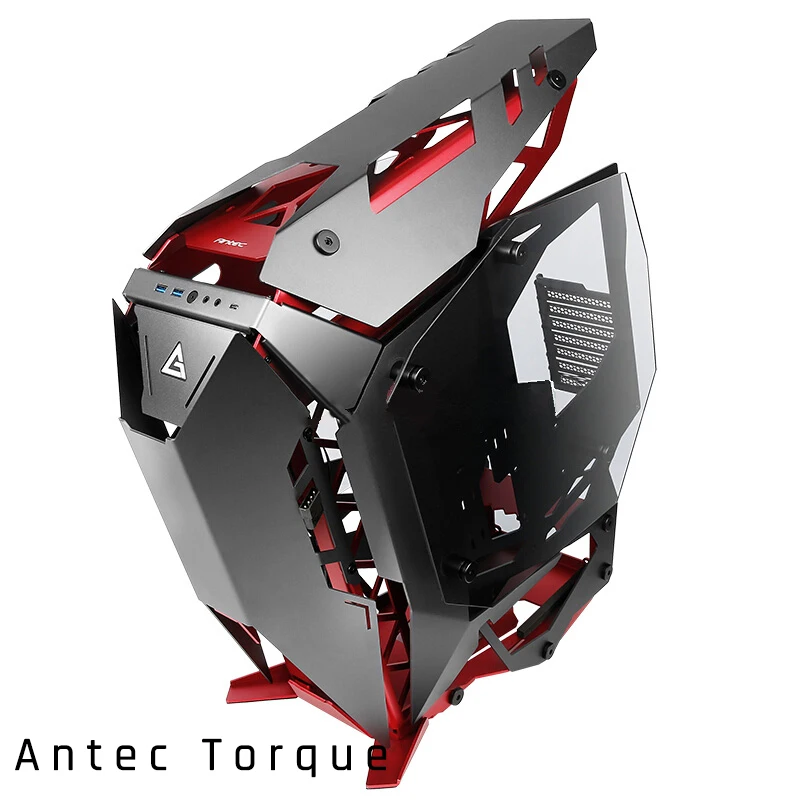

3. This product is only applicable to Antec Torque case, not applicable to other models.
4. Suitable for single and dual graphics installation
5. Material: Matte Acrylic
6. Compatible with all Barrow's INTEL platform CPU water cooling block
7. Can be compatible with two 360mm radiators
8. Compatible with a variety of models at the same time, super compatibility

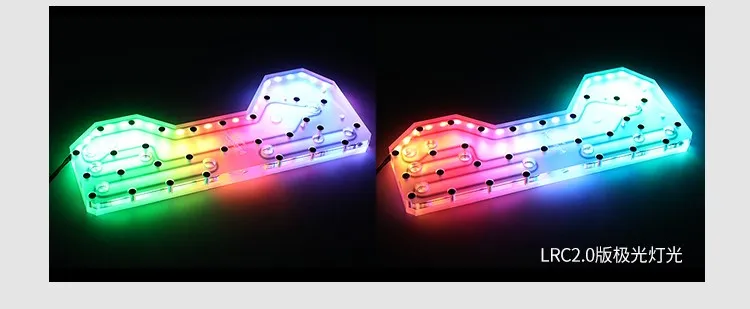

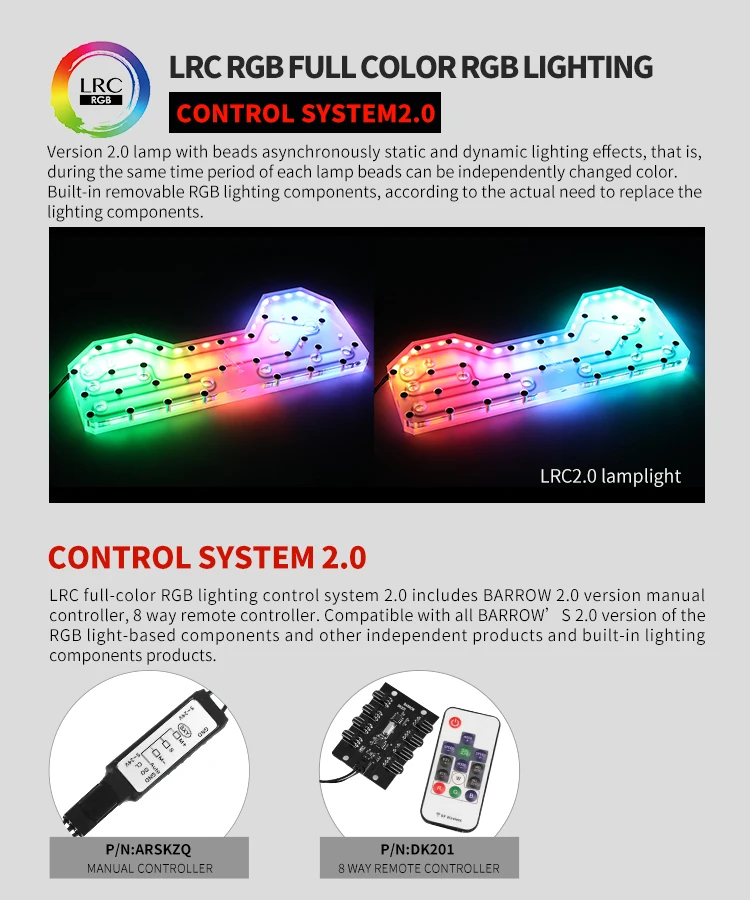

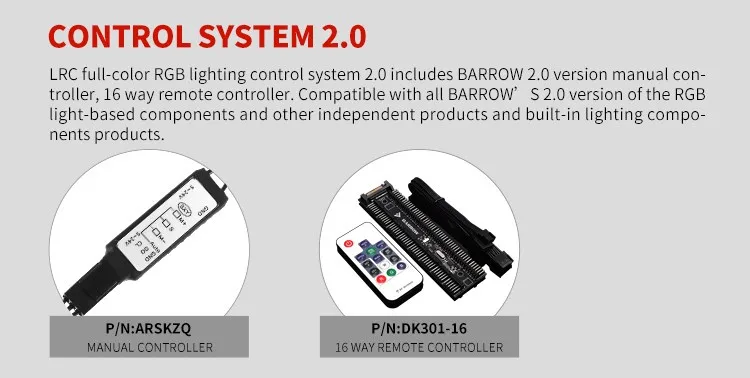

9. Control type: LRC2.0 Aurora lighting control system
    (controller needs to be purchased separately)
10. All pumps, radiators, reservoirs, cases and other products in details photos are for reference only
