FormulaMod
FormulaMod Fm-CableKit-01 18AWG Sleeved PSU Extension Cable Kit, ATX 24-Pin + Dual PCIe 8-Pin + EPS/CPU 8-Pin, with Cable Combs
FormulaMod Fm-CableKit-01 18AWG Sleeved PSU Extension Cable Kit, ATX 24-Pin + Dual PCIe 8-Pin + EPS/CPU 8-Pin, with Cable Combs
TL;DR: The Fm-CableKit-01 is a 18AWG sleeved PSU extension kit aimed at builders who want clean, visible cable runs without re-pinning their power supply. The kit contains one ATX 24-pin, two PCIe 8-pin (6+2) for the GPU, and one EPS/CPU 8-pin cable, plus a comb set that keeps each pair of wires aligned...
Common Applications

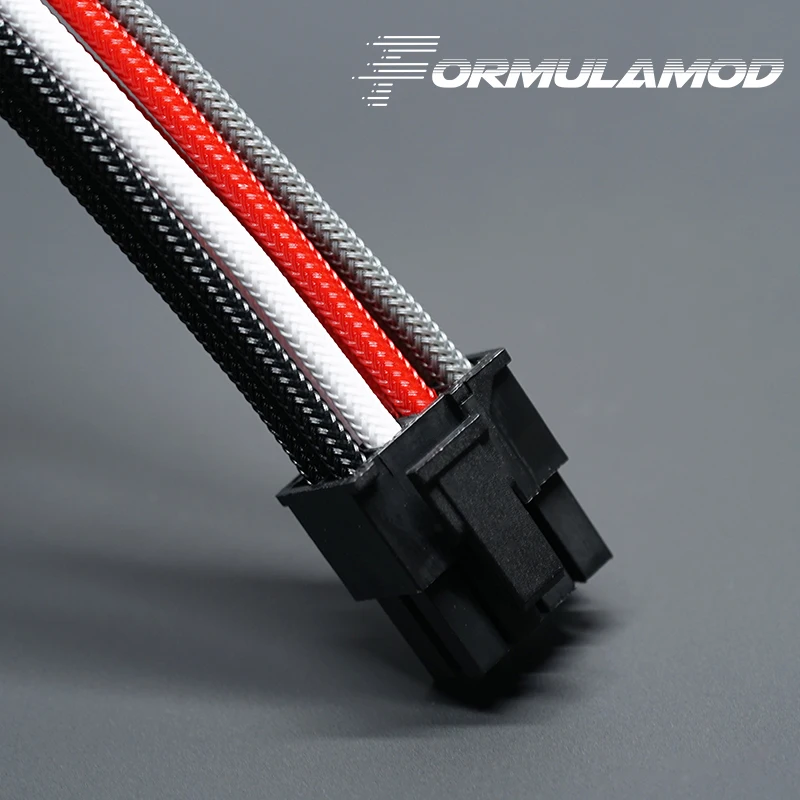

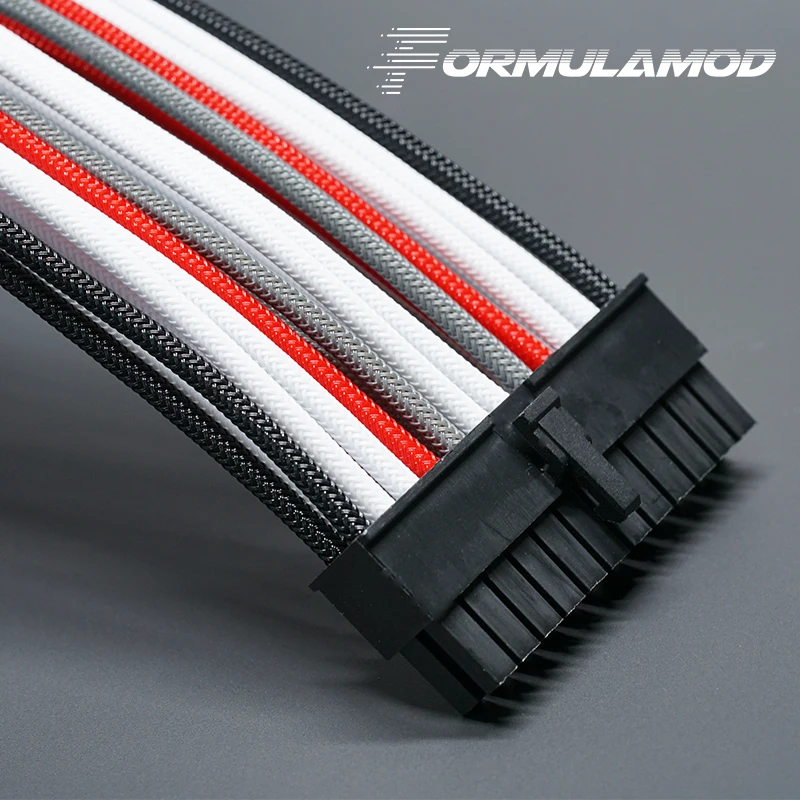

The Fm-CableKit-01 is a 18AWG sleeved PSU extension kit aimed at builders who want clean, visible cable runs without re-pinning their power supply. The kit contains one ATX 24-pin, two PCIe 8-pin (6+2) for the GPU, and one EPS/CPU 8-pin cable, plus a comb set that keeps each pair of wires aligned through the run. Length options are 200mm, 300mm, 400mm, 500mm, 600mm, and 700mm to fit ITX cases through full-tower vertical GPU mounts. The cables are extensions, so they plug into the existing PSU cable on one side and the motherboard or GPU on the other; no PSU-side pinning is changed.
Frequently Asked Questions
Q: Do these cables replace my PSU's cables?
A: No. They extend the existing PSU cables: female header onto the PSU cable, male side into the motherboard or GPU.
Q: What cables come in the kit?

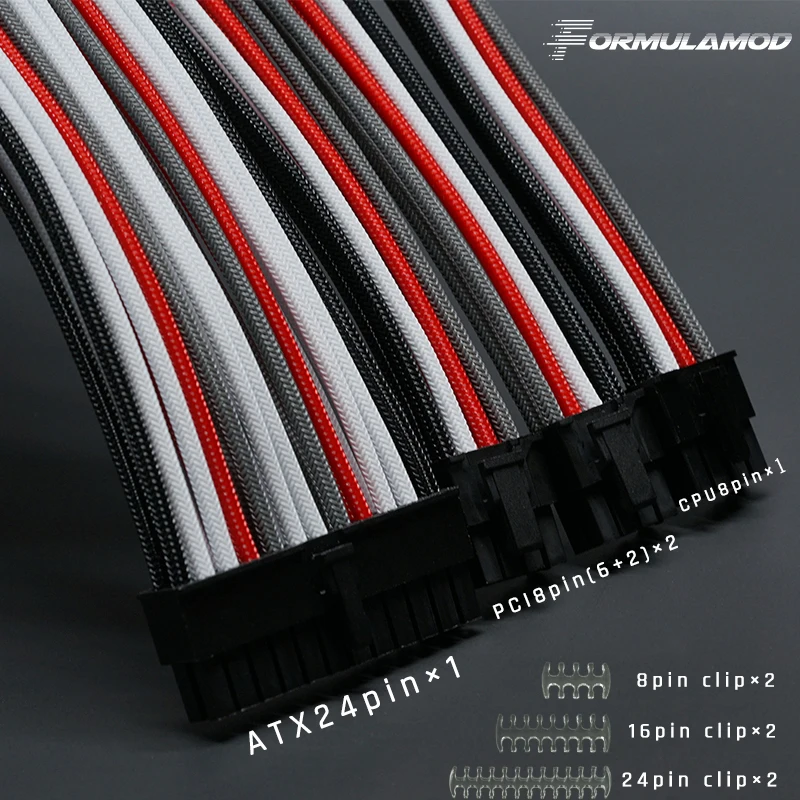

A: One ATX 24-pin, two PCIe 8-pin (6+2), one EPS/CPU 8-pin, plus a cable comb set.
Q: What lengths are offered?
A: 200, 300, 400, 500, 600, and 700mm. Choose by the case and routing path.
Q: What gauge wire is used?
A: 18 AWG throughout, with a pre-shaped sleeve that holds its bend without heat shrink.
Q: Are they universal across power supplies?
A: Yes for the motherboard and GPU side, since the connectors follow the standard ATX, PCIe, and EPS pinouts. They are not PSU-side replacement cables, so PSU pinout differences do not matter.
