  • Bykski A-SP48OVA-X, Full Cover Graphics Card Water Cooling Block RGB/RBW for Sapphire RX480/470, Pulse RX580
  • Bykski A-SP48OVA-X, Full Cover Graphics Card Water Cooling Block RGB/RBW for Sapphire RX480/470, Pulse RX580
  • Bykski A-SP48OVA-X, Full Cover Graphics Card Water Cooling Block RGB/RBW for Sapphire RX480/470, Pulse RX580
  • Bykski A-SP48OVA-X, Full Cover Graphics Card Water Cooling Block RGB/RBW for Sapphire RX480/470, Pulse RX580

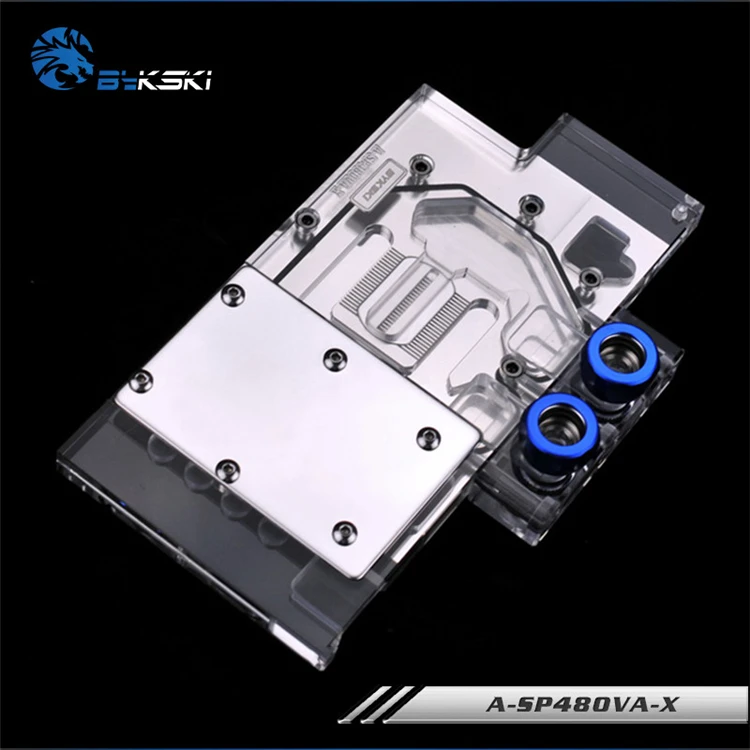

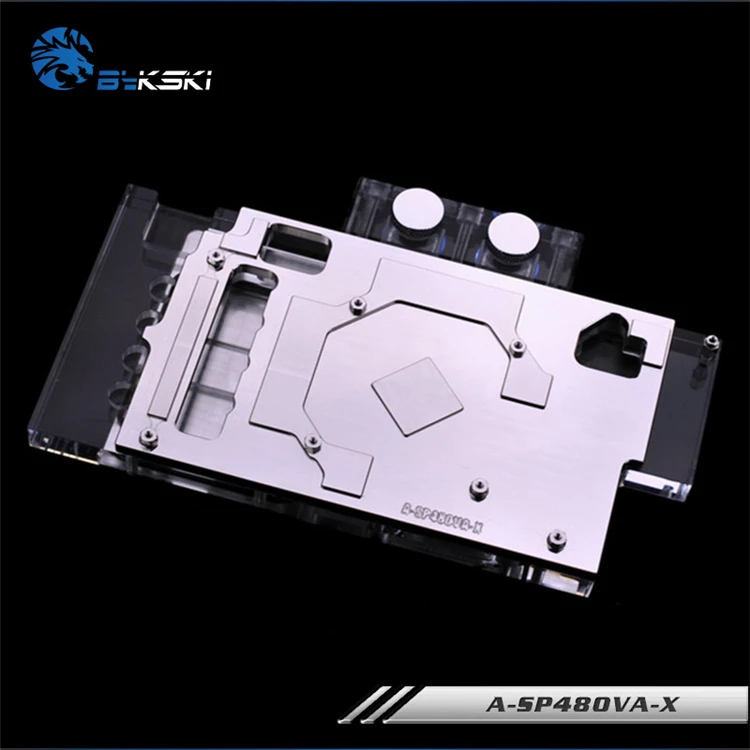

Bykski A-SP48OVA-X, Full Cover Graphics Card Water Cooling Block RGB/RBW for Sapphire RX480/470, Pulse RX580

stars, based on ( 0 ) review
$71.53now$66.83 piece
86 items available
Public version of the design specifications of the graphics card , make sure the graphics card before purchasing specific model specifications to ensure compatibility water-cooled heads.

 Waterblock using 0.5MM micro- channel design , more powerful performance !Direct cooling graphics core (GPU), memory (RAM), and graphics power (VRM) key heating parts of these cards to ensure player gaming and overclocking stability , maintain an excellent temperature.

bottom of the water-cooled heads manufactured using high- purity copper and plated to prevent oxidation , but also makes water-cooled head exquisite beauty . Cover the use of high-quality POM materials or imported acrylic material to ensure the life of the head has cooled and durability . Sealing material fatigue anti-aging high specification seals to ensure sealing water-cooled heads.

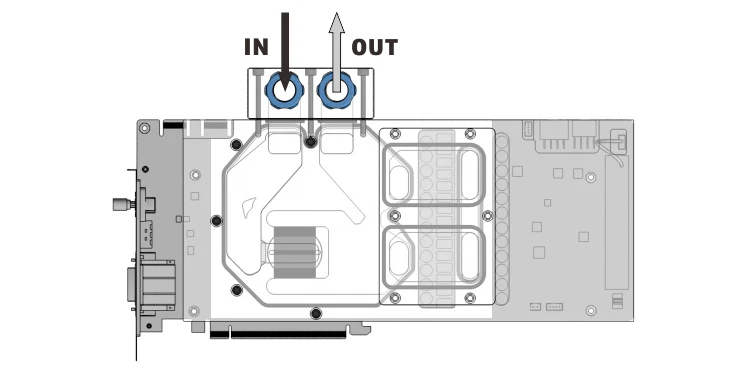

graphics waterblock can freely change direction , to facilitate the players to form SLI system, in series or in parallel.

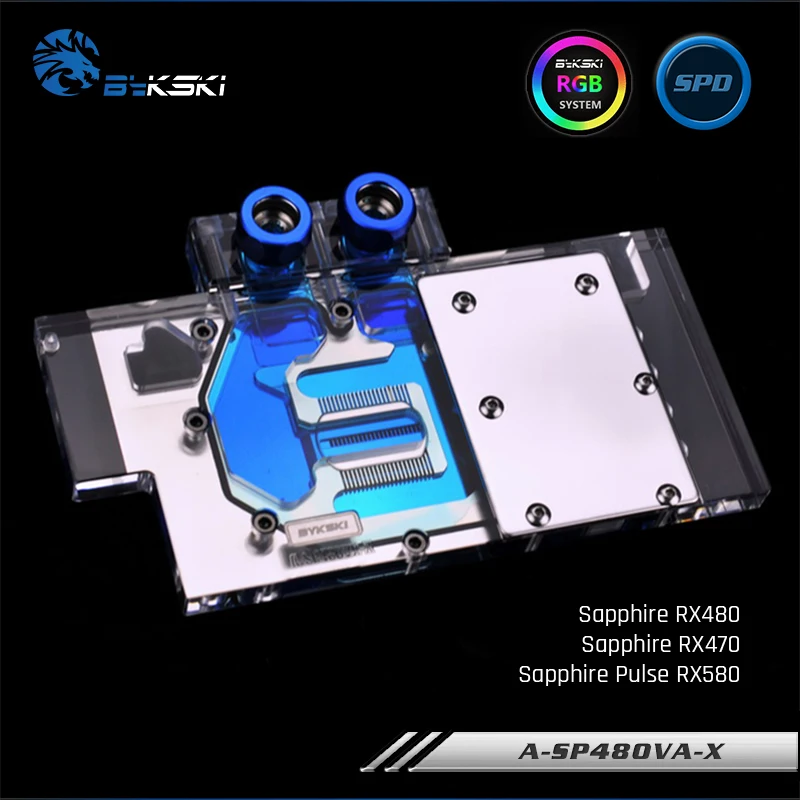

Support Model:
Sapphire RX480 8G
Sapphire RX480 4G
Sapphire Pulse RX580 (Please check the PCB about the arrangement and location of the capacitors)


Please check if your PCB is consistent with the picture, to ensure compatibility!
11-01HTB13jZGQVXXXXbqaXXXq6xXFXXXa-01

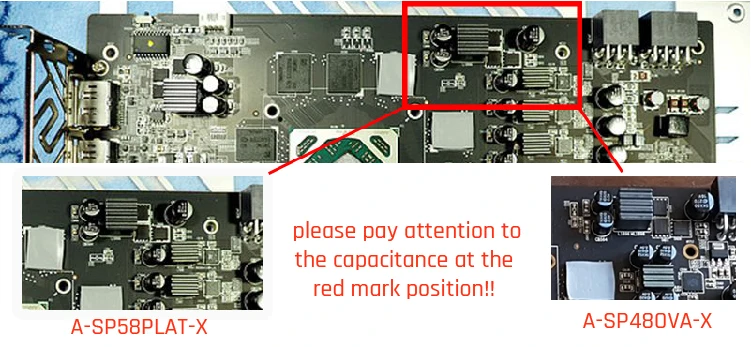

Regarding the PCB, please pay attention to the arrangement and location of the capacitors in the red position.
Take the Pulse RX580 as an example.

The position of the capacitor shown on the right,
Please select A-SP48OVA-X

The position of the capacitor shown on the left,
Please select A-SP58PLAT-X(Cilck here)




Parts list:

 Plug  x2

 grease, thermal paste x1

 Install screw

                                             Does not contain fittings

02 03
TB2k0RxkcbI8KJjy1zdXXbe1VXa_!!68100854-01TB2jhhWkx6I8KJjSszfXXaZVXXa_!!68100854TB2WXYndLjM8KJjSZFyXXXdzVXa_!!68100854TB237C4kx6I8KJjy0FgXXXXzVXa_!!6810085404
